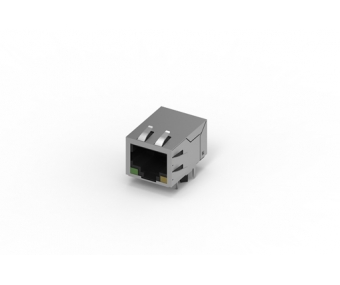

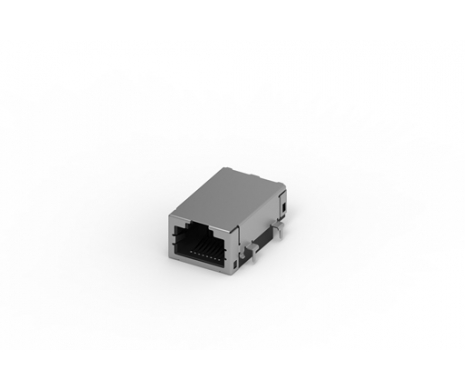

RJ45 R/A Middle Mount, Upper Latch, DIP, w/EMI, w/o LED
212A-11CD0-RA8
Right Angle, Middle Mount, Upper Latch, DIP, w/EMI, w/o LED, 5u"
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
| Current Rating | 350mA per pin |
|---|---|
| Voltage Rating | 570V DC per pin |
| Contact Resistance | 20mΩ Max. |
| Insulation Resistance | 1000MΩ Min. |
| Dielectric Withstanding Voltage | 1500VAC/2250VDC |
| Durability | 1,000 Cycle |
|---|---|
| Insertion Force | 35.6N max. |
| Extraction Force | 35.6N max. |
| Operating temperature range | -0℃~+70℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|---|
| Recommended PCB Thickness | 1.5mm |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 212A-11CD0-RA8 | 509 KB | PDF: Drawing |  |
| 3D | 212A-11CD0-RA8 | 379 KB | RAR: 3D File | |
