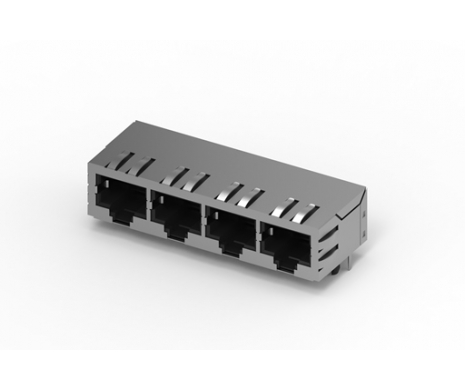

RJ45 1X4 R/A, Bottom Latch, DIP, w/EMI, w/o LED
212A-14CA0-RA11
RJ45 1X4, Right Angle, Bottom Latch, DIP, w/EMI, w/o LED, 5u''

RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
SPECIFICATION
ELECTRICAL
Current Rating1.5A per pin
Voltage Rating125V DC per pin
Contact Resistance50mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage1000VAC
MECHANICAL
Durability750 Cycle
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃
Recommended PCB Thickness1.6mm
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing212A-14CA0-RA11256 KBPDF: DrawingDownload
