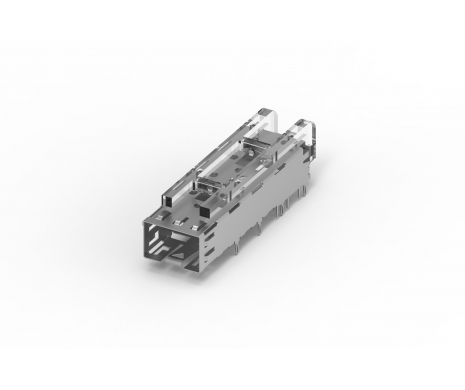

SFP Cage 1x1 Press Fit Type w/Light Pipe
223A-1105
SFP Cage 1x1 Press Fit Type w/Light Pipe
The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communication applications. ATTEND offers a variety of SFP/SFP+/QSFP cage types that support 1Gbps to 40Gbps data rates for Gigabit Ethernet and Optical Fiber applications and compatible industry-wide standard SFP/ SFP+/ QSFP modules for your application usage to fit your high-speed networking request.
The small form-factor pluggable (SFP) is a compact, hot-pluggable network interface module used for both telecommunication and data communication applications. ATTEND offers a variety of SFP/SFP+/QSFP cage types that support 1Gbps to 40Gbps data rates for Gigabit Ethernet and Optical Fiber applications and compatible industry-wide standard SFP/ SFP+/ QSFP modules for your application usage to fit your high-speed networking request.
Share:
SPECIFICATION
| Current Rating | 0.5A MAX. |
|---|---|
| Voltage Rating | 30V AC/DC |
| Contact Resistance | 20mΩ |
| Insulation Resistance | 500MΩ |
| Differential Impedance Voltage | 100Ω |
| Housing Material | LCP UL94V-0, Black |
|---|---|
| Contact Material | Phosphor Bronze, 0.2T |
| Operating Life | 250 Cycles Min. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| IR Temperature | 255°C±5°C (5 to 10 sec) |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 223A-1105 | 293 KB | PDF: Drawing |  |
| 3D | 223A-1105 | 405 KB | RAR: 3D File | |
