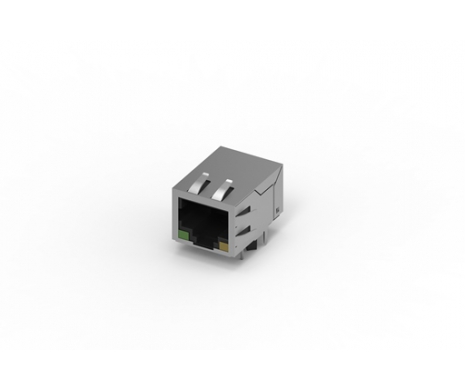

RJ45 R/A Bottom Latch, DIP, w/EMI / LED
213A-11CAA-R
Right Angle, Bottom Latch, DIP, w/EMI / LED
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
| Insertion Loss | 1-100MHz -1.0 dB Max. |
|---|---|
| Insertion Loss | 1-30MHz -18dB Min. Load 100 Ohms |
| Return Loss | 30-80MHz -12dB Min. Load 100 Ohms |
| Cross Talk | 30MHz – 40dB Typ. |
| Cross Talk | 60MHz – 35dB Typ. |
| Cross Talk | 100MHz – 30dB Typ. |
| CMRR | 1-50MHz – 30dB Typ. |
| CMRR | 50-130MHz -20dB Typ. |
| Turn Ratios | RX=1:1(+/-3%) TX=1:1(+/-3%) |
| Isolation 60Hz | Input to Output 1500Vrms, 60 Seconds |
| Primary Inductance | @100KHz 0.1Vrms.8mA DC Bias 350uH Min. |
| Housing Material | High Temp. UL94V-0. |
|---|---|
| Contact Material | Phosphor Bronze t=0.35mm |
| Plating | Gold Plating over Nickel. |
| Operating Life | 750 Cycles Min. |
| PCB Retention Pre-Solder | 1 LB Min. |
| PCB Retention Post-Solder | 10 LBS Min. |
| Storage Temperature | -40℃~+85℃ |
|---|---|
| Operation Temperature | 0℃ to +70℃ |
| Wave Soldering Temperature | 230℃~250℃(3~5 Seconds) |
| Wave Soldering Temperature | Mates with Modular Plug Conforming to FCC Part 68, Subpart F. |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 213A-11CAA-R | 122 KB | PDF: Drawing |  |
| 3D | 213A-11CAA-R | 265 KB | RAR: 3D File | |
