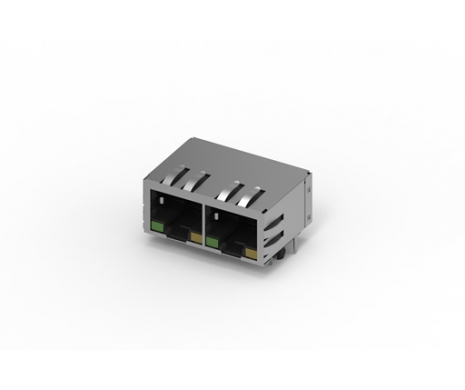

RJ45 1X2 R/A Bottom Latch, DIP, w/EMI / LED
213A-12CAA-RA12
1X2, Right Angle, Bottom Latch, DIP, w/EMI / LED, 5u"
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
| Current Rating | 1.5A per pin |
|---|---|
| Voltage Rating | 125V DC per pin |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 1000VAC |
| Terminal Durability | 750 Cycle |
|---|
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended Wave Soldering Temperature | 260℃ |
|---|---|
| Recommended PCB Thickness | 1.6mm |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 213A-12CAA-RA12 | 164 KB | PDF: Drawing |  |
| 3D | 213A-12CAA-RA12 | 540 KB | RAR: 3D File | |
