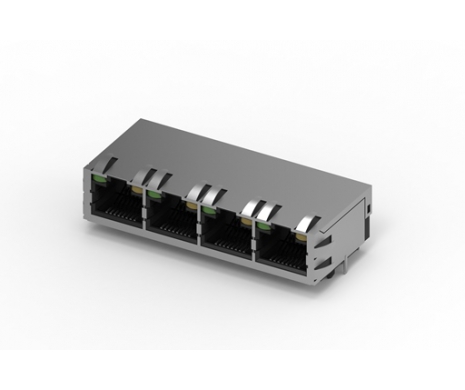

RJ45 1X4 R/A, Upper Latch, DIP, w/EMI / LED
213B-14CAB-01
1X4, Right Angle, Upper Latch, DIP, w/EMI / LED, 5u''
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
RJ45 is well known as the 8 positions 8 contacts (8P8C) connector. It’s a modular connector used to terminate twisted pair and multi-conductor flat cable commonly. It's a well-known connector for linking the device with the internet, ATTEND offers an extensive connectivity portfolio which supports your need in different specifications, materials, ports, and functions.
Share:
SPECIFICATION
| TR: (100KHz, 0.1V) | PINS:(2,3):(J1,J2)=1CT:1CT±3%;(4,5):(J3,J6)=1:1±3% |
|---|---|
| TR: (100KHz, 0.1V) | PINS:(6,7):(J4,J5)=1CT:1CT±3%;(8,9):(J7,J8)=1:1±3% |
| LX: (100KHz, 100mV, 8mA, DC Bias) | PINS: (J1,J2),(J3,J6),(J4,J5),(J7,J8)=350uH MINIMUM |
| DCR: PINS | (2,3),(4,5),(6,7),(8,9)=1.5 OHMS MAXIMUM. PINS: (J1,J2),(J3,J6),(J4,J5),(J7,J8)=1.5 OHMS MAXIMUM. |
| HIPOT | PINS(2,3)TO(J1,J2):(4,5)TO(J3,J6)=1500VAC FOR 2 SECONDS |
| HIPOT | PINS(6,7)TO(J4,J5);(8,9)TO(J7,J8)=1500VAC FOR 2 SECONDS |
| INSERTION LOSS | -0.5dB MAXIMUM AT 1MHz TO 65MHz -0.8dB MAXIMUM AT 65MHz TO 100MHz -1.2dB MAXIMUM AT 100MHz TO 125MHz |
| RETURN LOSS | -16dB MINIMUM AT 1MHz TO 30MHz -13.5dB MINIMUM AT 30MHz TO 40MHz -11.5dB MINIMUM AT 40MHz TO 50MHz -10dB MINIMUM AT 50MHz TO 80MHz |
| CROSS TALK | 30dB MINIMUM AT 1MHz TO 100MHz |
| COMMON TO DIFFERENTIAL MODE REJECTION | 30dB MINIMUM AT 1MHz TO 100MHz |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 213B-14CAB-01 | 94 KB | PDF: Drawing |  |
