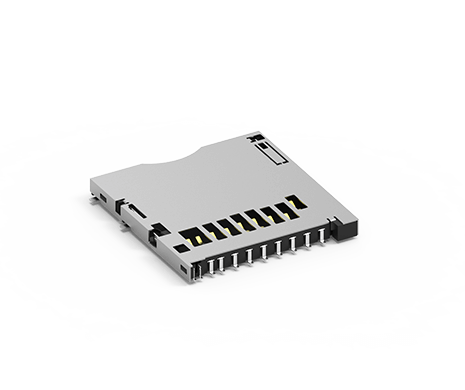

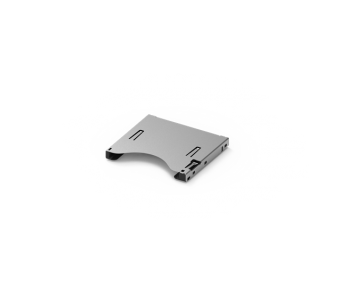

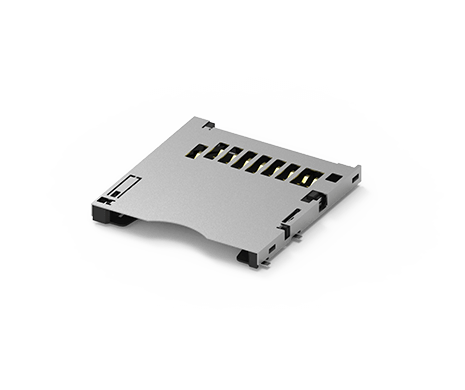

SD Card Socket, Reverse Push-Push Type, w/switch
104D-RCA0-RA1
SD Card Socket, Reverse Push-Push Type w/switch, 5u''
ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
Share:
MAIN FEATURES
- Various types available, including push-push, push-pull, reverse, and hinge
- Meet SDA standards for known compatibility and reliability
- Ultra-high-speed interface compatible (UHS-I)
- Write-protect switch optional
- Card detection switch optional
- Embedded systems
- Machine vision systems
- IIoT
- Infotainment
- Action Cameras
SPECIFICATION
| Current Rating | 0.5A MAX. |
|---|---|
| Voltage Rating | 100V AC |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500V AC |
| Contact Retention Force | 0.25kgf Min. |
|---|---|
| Insertion Force | 4.2kgf Max. |
| Withdrawal Force | 0.21kgf Min. |
| Durability | 5,000 Cycles |
| Operating temperature range | -20℃~+85℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 104D-RCA0-RA1 | 352 KB | PDF: Drawing |  |
| 3D | 104D-RCA0-RA1 | 574 KB | RAR: 3D File | |
| Datasheet | 104D-RCA0-RA1 | 340 KB | PDF:Spec | |
