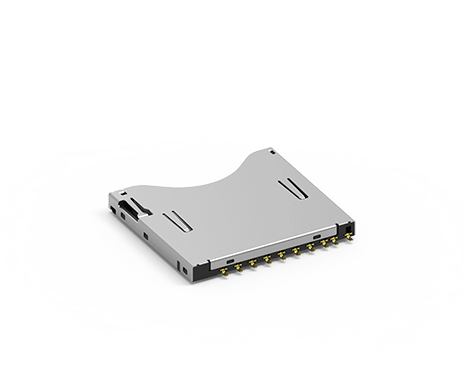

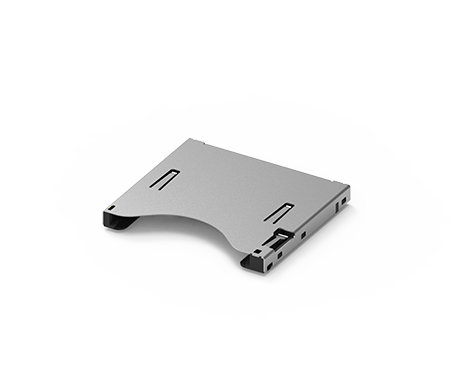

SD Card Socket, Push-Push Type
104D-TCA0-R06
SD Card Socket, Push-Push Type, Top Mount, SMT, 10u''
ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
Share:
MAIN FEATURES
- 提供多種類型，包括推推式、推拉式、反向式和掀蓋式
- 符合 SDA 標準，確保已知的兼容性和可靠性
- 兼容超高速接口 (UHS-I)
- 可選擇寫保護開關
- 可選擇卡片檢測開關應用領域
- 嵌入式系統
- 機械視覺系統
- IIoT
- 車用資訊娛樂
- 動作攝影機
SPECIFICATION
| Plastic Body | LCP+35%GF, Color Black |
|---|---|
| Slider | LCP+35%GF, Color Black. |
| Contact | Phosphor Bronze Alloy (C5210R–EH) |
|---|---|
| Switch A/C | Phosphor Bronze Alloy (C5210R–EH) |
| Hold down | Phosphor Bronze Alloy (C5191R–H). |
| Contact area | Gold 10 micro inches (Min.) |
| Solder area | Gold flash |
| Solder area | Gold flash All under-plated Ductile Nickel 50 micro inches (Min.) |
| Switch A/C & Hold down | Contact area: Gold flash,Solder area: Gold flash All under-plated Ductile Nickel 50 micro inches (Min.) |
| Shell | SUS304R-3/4 H |
|---|---|
| Latch | SUS304R-3/4 H |
| Spring | Piano Wire |
| Drag Link | SUS304 |
| Operating Temperature | -25℃to +90℃ |
|---|---|
| Storage Temperature | -40℃to +90℃ |
| Ambient Humidity | 90%～95% R.H. |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 104D-TCA0-R06 | 224 KB | PDF: Drawing |  |
| 3D | 104D-TCA0-R06 | 631 KB | RAR: 3D File | |
| Datasheet | 104D-TCA0-R06 | 373 KB | PDF:Spec | |
