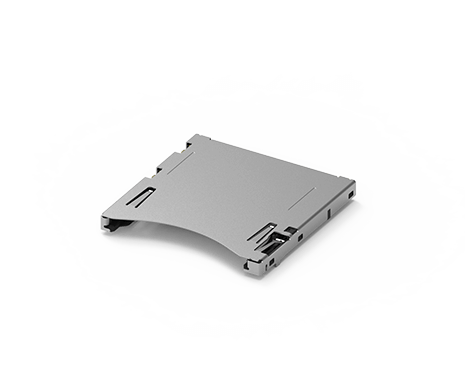

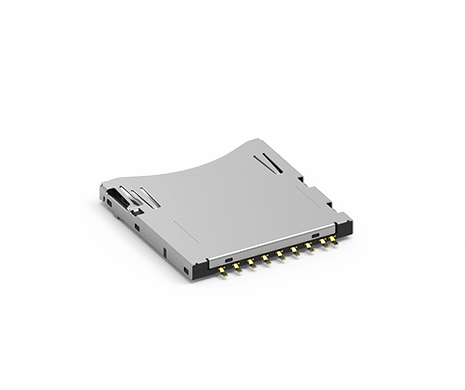

SD Card Socket, Push-Push Type, w/Lock
104H-TDA0-R01
SD Card Socket, Push-Push Type, with Card Lock, Top Mount, SMT, 10u''
ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
Share:
MAIN FEATURES
- Various types available, including push-push, push-pull, reverse, and hinge
- Meet SDA standards for known compatibility and reliability
- Ultra-high-speed interface compatible (UHS-I)
- Write-protect switch optional
- Card detection switch optional
- Embedded systems
- Machine vision systems
- IIoT
- Infotainment
- Action Cameras
SPECIFICATION
| Insulator | LCP, UL 94V-0 |
|---|---|
| Contact | Phosphor Bronze Alloy |
| Contact Area | 10u" Gold Plated, under- plated Ductile Nickel |
|---|---|
| Solder Area | Gold Flash |
| Contact Area | 10u" Gold Plating. |
| Current Rating | 1 Amps Max. |
|---|---|
| Insulation Resistance | 1000 MΩ Min |
| Rating Current | 0.5A |
| Rating Voltage | 100V AC/DC |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 104H-TDA0-R01 | 153 KB | PDF: Drawing |  |
| 3D | 104H-TDA0-R01 | 636 KB | RAR: 3D File | |
| Datasheet | 104H-TDA0-R01 | 246 KB | PDF:Spec | |
