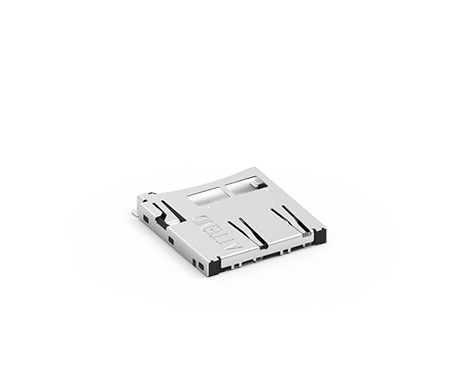

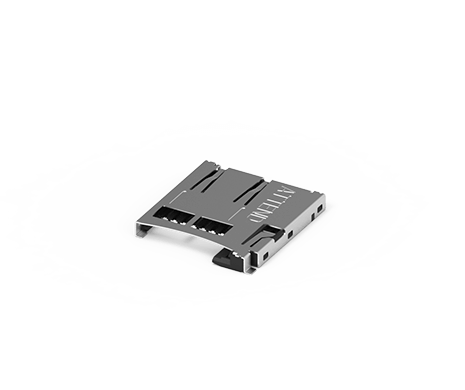

Micro SD Socket, Push-Push Type, H=1.83mm
112A-TAAR-R03
Micro SD Card Socket, Push-Push Type, with Switch,Top Mount, SMT, H=1.83mm, 10u"

ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
Share:
MAIN FEATURES

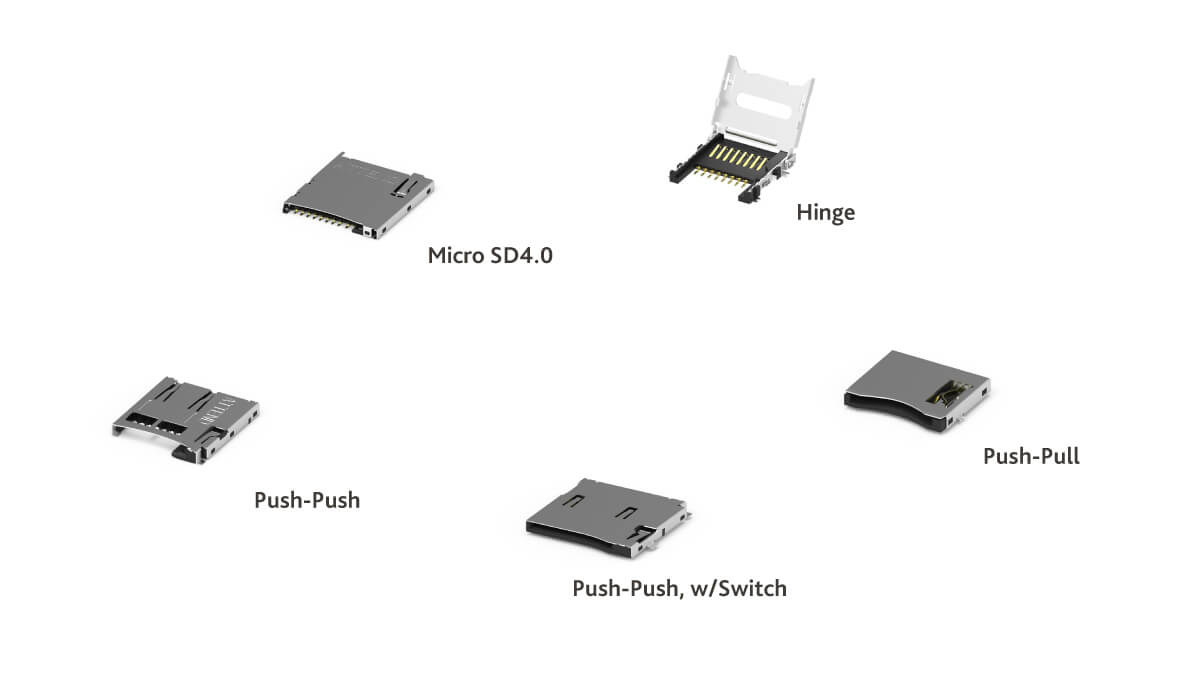

Micro SD Card Socket Main Feature
  • Various types available, including push-push, push-pull, reverse, and hinge
  • Meet SDA standards for known compatibility and reliability
  • Ultra-high-speed interface compatible (UHS-I)
  • Write-protect switch optional
  • Card detection switch optional
APPLICATION
Infotainment
  • Embedded systems
  • Machine vision systems
  • IIoT
  • Infotainment
  • Action Cameras
SPECIFICATION
ELECTRICAL
Current Rating0.5A per pin
Voltage Rating100VAC/DC
Contact Resistance50mΩ Max.
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Terminal Durability10,000 Cycle
Insertion Force9.8N Max.
Extraction Force9.8N Min.
ENVIRONMENTAL
Operating temperature range-40℃~+90℃
Storage temperature range-40℃~+90℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃
Recommended PCB Thickness1.0mm
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing112A-TAAR-R03304 KBPDF: DrawingDownload
3D112A-TAAR-R03541 KBRAR: 3D FileDownload
Datasheet112A-TAAR-R03305 KBPDF:SpecDownload
