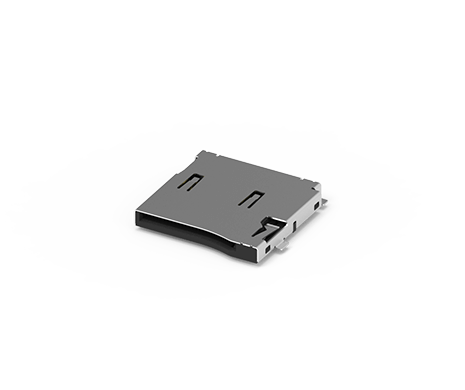

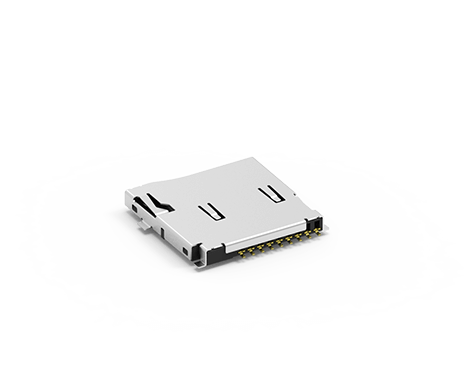

Micro SD Socket, Push-Push Type, w/Switch, H=1.85mm
112J-TDAR-R01
Micro SD Card Socket, Push-Push Type, with Switch, Top Mount, SMT, H=1.85mm, 10u''
ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
ATTEND's SD memory full size cards have nine pins in one row, and microSD memory cards have eight. The pins are used for default speed, high-speed, and UHS-I bus interface modes. The 104 series SD and the 112 series microSD sockets support data transfer speeds of up to 104 Mbyte/s and SD, SDHC, SDXC, and SDUC, the four card capacity types. They are universally used in industrial cameras, embedded systems, IIoT devices, and various other products.
Share:
MAIN FEATURES
- Various types available, including push-push, push-pull, reverse, and hinge
- Meet SDA standards for known compatibility and reliability
- Ultra-high-speed interface compatible (UHS-I)
- Write-protect switch optional
- Card detection switch optional
- Embedded systems
- Machine vision systems
- IIoT
- Infotainment
- Action Cameras
SPECIFICATION
| Contact area | Gold flash. |
|---|---|
| Solder area | Gold flash All under-plated Ductile Nickel 12 micro inches (Min.). |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 112J-TDAR-R01 | 109 KB | PDF: Drawing |  |
| 3D | 112J-TDAR-R01 | 512 KB | RAR: 3D File | |
| Datasheet | 112J-TDAR-R01 | 354 KB | PDF:Spec | |
