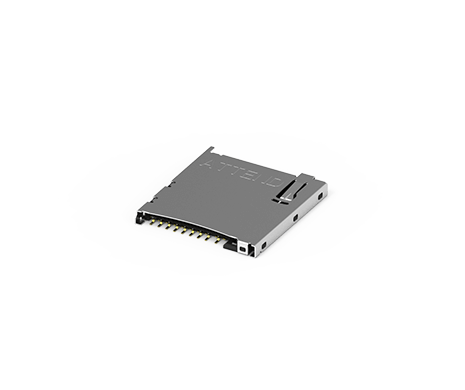

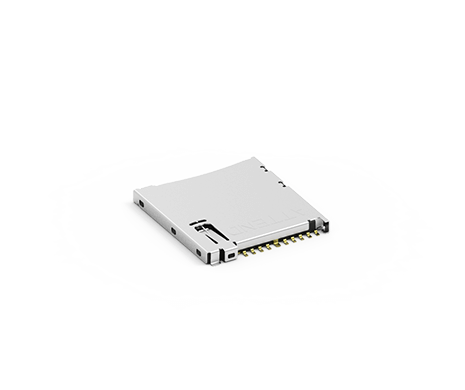

Micro SD 4.0 Socket, Push-Push Type
112L-TDA0
Micro SD 4.0 Card Socket, Push-Push Type, Top Mount, SMT, 10u"

The Secure Digital Memory Card becomes a standard application for different industries since it’s first launched in the market with a variety of sizes to fit in different usage. Today, SD / Micro SD card become the standard portable storage solution. ATTEND's SD / Micro SD card socket featured a durable design in multiple types, such as push-pull, hinge, push-push, and combo (Micro SD+SIM) type.

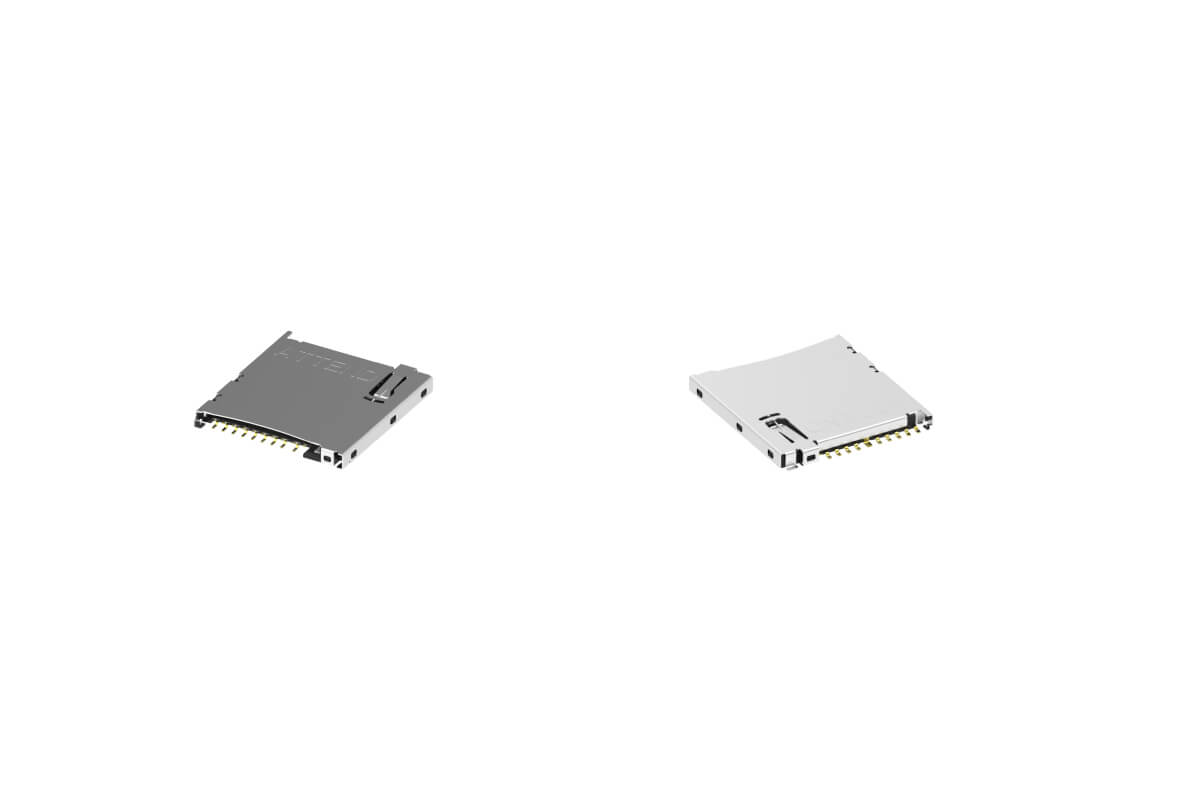

MAIN FEATURES
*
APPLICATION:
  • Mobile Devices
  • POS Terminals
  • IIoT Applications
  • Security Systems
  • Drive Recorders
SPECIFICATION
ELECTRICAL
Current Rating0.5A
Voltage Rating3.3VDC
Contact Resistance100mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Terminal Durability5,000 Cycle
Insertion Force8N max.
Extraction Force8N max.
ENVIRONMENTAL
Operating temperature range-25°C~+85°C
Storage temperature range-40°C~+85°C
SOLDER ABILITY
Recommended IR-Reflow Temperature255°C max
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing112L-TDA0134 KBPDF: DrawingDownload
3D112L-TDA0RAR: 3D FileDownload
