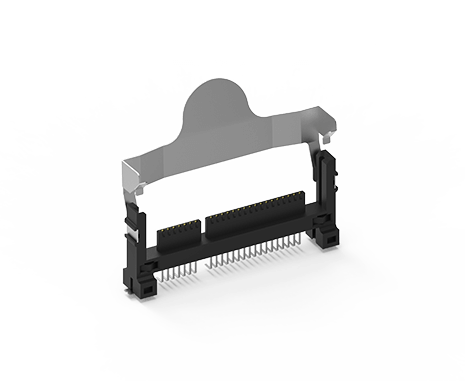

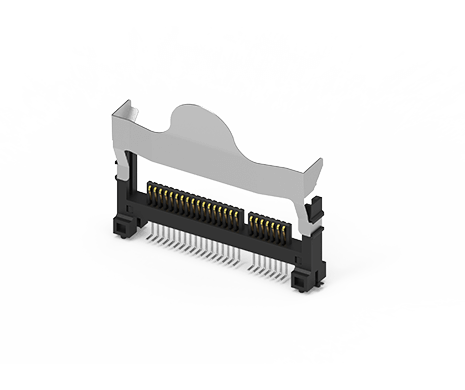

CFAST Socket Vertical Type, w/Lock
120E-1G00
CFAST Socket, Vertical Type, with Lock, SMT, 30u''
ATTEND's CFast Memory Card Sockets utilize the SATA interface and the 120 series socket supports SATA 3.0 data transfer speeds of up to 600 MB/s, enabling quick and seamless communication between the card and the host device. This format is commonly used in professional digital cinema cameras, high-end DSLRs, and other devices where rapid and reliable storage is essential for capturing high-quality video and images.
ATTEND's CFast Memory Card Sockets utilize the SATA interface and the 120 series socket supports SATA 3.0 data transfer speeds of up to 600 MB/s, enabling quick and seamless communication between the card and the host device. This format is commonly used in professional digital cinema cameras, high-end DSLRs, and other devices where rapid and reliable storage is essential for capturing high-quality video and images.
Share:
MAIN FEATURES
- Compatible two standard CFast 1.0/1.1 (300 MB/s) and CFast 2.0 (600 MB/s)
- Many various types available, including push-pull, slim, and vertical types
- 7 pins for signal transmission and 17 pins for power and control, resulting in a total of 24 pins
APPLICATIONS
- Industrial equipment
- In-vehicle computers
- Digital cinema cameras
- High-end DSLRs
- Recorders
SPECIFICATION
| Current Rating | 1.5A |
|---|---|
| Voltage Rating | 30V AC/DC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500VAC |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 28N max. |
| Extraction Force | 3.7N~24.5N max. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 120E-1G00 | 203 KB | PDF: Drawing |  |
| 3D | 120E-1G00 | 417 KB | RAR: 3D File | |
