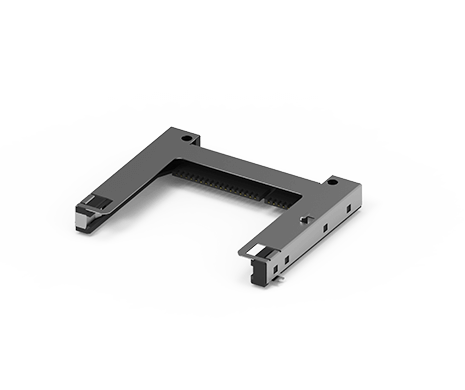

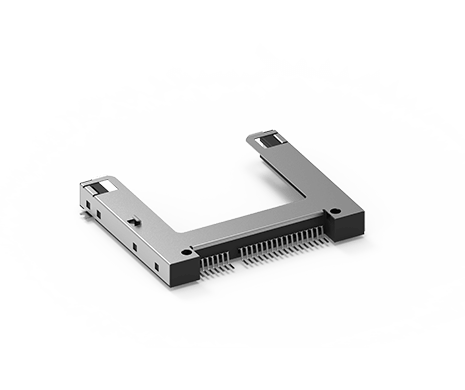

CFAST Socket Push-Pull Type, w/o Lock, H=6.05mm
120A-605D00
CFAST Socket, Push-Pull Type, without Lock, H=6.05mm, 10u"

ATTEND's CFast Memory Card Sockets utilize the SATA interface and the 120 series socket supports SATA 3.0 data transfer speeds of up to 600 MB/s, enabling quick and seamless communication between the card and the host device. This format is commonly used in professional digital cinema cameras, high-end DSLRs, and other devices where rapid and reliable storage is essential for capturing high-quality video and images.
MAIN FEATURES
CFast
  • Compatible two standard CFast 1.0/1.1 (300 MB/s) and CFast 2.0 (600 MB/s)
  • Many various types available, including push-pull, slim, and vertical types
  • 7 pins for signal transmission and 17 pins for power and control, resulting in a total of 24 pins
Industrial equipment
APPLICATIONS
  • Industrial equipment
  • In-vehicle computers
  • Digital cinema cameras
  • High-end DSLRs
  • Recorders
SPECIFICATION
ELECTRICAL
Current Rating1.5A
Voltage Rating100V AC/DC
Contact Resistance30mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500V DC
MECHANICAL
Durability10,000 Cycle
Insertion Force28.8N max.
Extraction Force3.7~24.5N max.
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing120A-605D00135 KBPDF: DrawingDownload
3D120A-605D00150 KBRAR: 3D FileDownload
