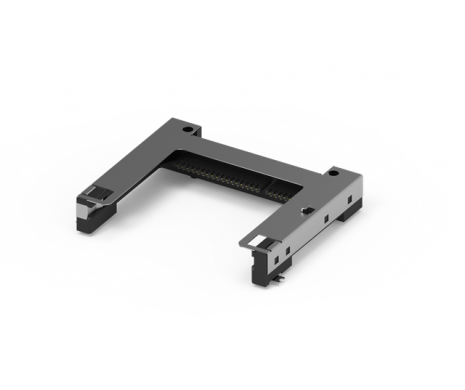

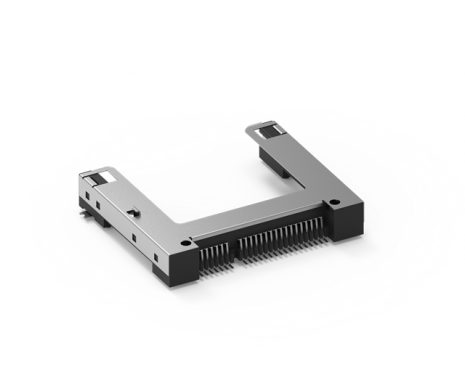

CFAST Socket Push-Pull Type, w/Lock, H=8.35mm
120B-835D00
CFAST Socket, Push-Pull Type, with Lock, H=8.35mm, 10u''
ATTEND's CFast Memory Card Sockets utilize the SATA interface and the 120 series socket supports SATA 3.0 data transfer speeds of up to 600 MB/s, enabling quick and seamless communication between the card and the host device. This format is commonly used in professional digital cinema cameras, high-end DSLRs, and other devices where rapid and reliable storage is essential for capturing high-quality video and images.
ATTEND's CFast Memory Card Sockets utilize the SATA interface and the 120 series socket supports SATA 3.0 data transfer speeds of up to 600 MB/s, enabling quick and seamless communication between the card and the host device. This format is commonly used in professional digital cinema cameras, high-end DSLRs, and other devices where rapid and reliable storage is essential for capturing high-quality video and images.
Share:
MAIN FEATURES
- Compatible two standard CFast 1.0/1.1 (300 MB/s) and CFast 2.0 (600 MB/s)
- Many various types available, including push-pull, slim, and vertical types
- 7 pins for signal transmission and 17 pins for power and control, resulting in a total of 24 pins
APPLICATIONS
- Industrial equipment
- In-vehicle computers
- Digital cinema cameras
- High-end DSLRs
- Recorders
SPECIFICATION
| Current Rating | 1.5A |
|---|---|
| Voltage Rating | 100V AC/DC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500V DC |
| Durability | 10000 Cycle |
|---|---|
| Insertion Force | 28.8N max. |
| Extraction Force | 3.7~24.5N max. |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 120B-835D00 | 142 KB | PDF: Drawing |  |
| Datasheet | 120B-835D00 | 350 KB | PDF:Spec | |
| 3D | 120B-835D00 | 186 KB | RAR: 3D File | |
