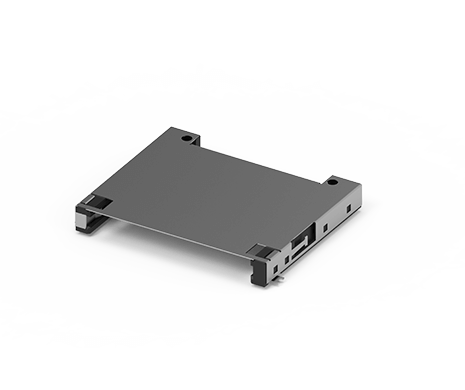

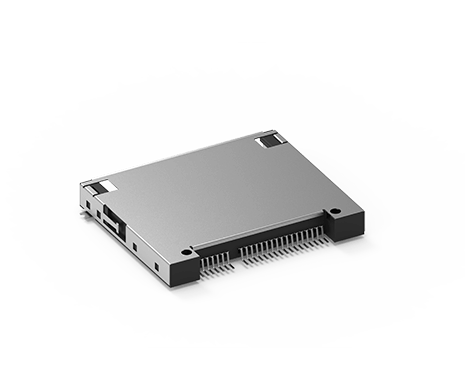

CFAST Socket Push-Push Type, H=6.05mm
120C-605D00
CFAST Socket, Push-Push Type, H=6.05mm, 10u"

CFast is a variant of CompactFlash base on the Serial ATA bus, with a 7-pin data connector and 17-pin power connector. CFast and CF cards are not directly compatible, but an adaptor can be used. The CFast offering a high-speed transmission up to 300MB/s(CFast 1.0/1.1) and 600MB/s(CFast 2.0), ATTEND provides a varied range and ruggedness of CFast connectors including the Push-Pull, Slim, and vertical type.
SPECIFICATION
ELECTRICAL
Current Rating1.5A
Voltage Rating100V AC/DC
Contact Resistance30mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500V DC
MECHANICAL
Durability10,000 Cycle
Insertion Force28.8N max.
Extraction Force3.7~24.5N max.
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing120C-605D00134 KBPDF: DrawingDownload
Datasheet120C-605D00350 KBPDF:SpecDownload
3D120C-605D00144 KBRAR: 3D FileDownload
