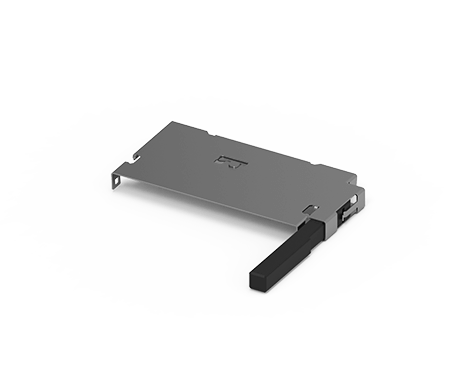

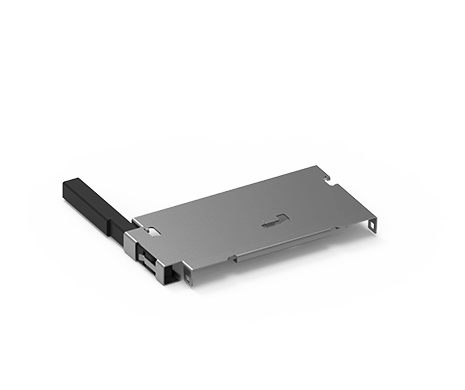

CF Socket Ejector, Straight type
101C-ESB0-R
CF Socket Ejector, Straight type, L=20mm
ATTEND's CF Memory Card Sockets are based on the 50-pin parallel ATA interface (PATA) with data transfer speeds of up to 133 MB/s. The 101D series CompactFlash socket is a popular and continuously preferred option for use in digital cameras and industrial equipment.
ATTEND's CF Memory Card Sockets are based on the 50-pin parallel ATA interface (PATA) with data transfer speeds of up to 133 MB/s. The 101D series CompactFlash socket is a popular and continuously preferred option for use in digital cameras and industrial equipment.
Share:
MAIN FEATURES
- Many various types available, including type I/II card hybrid, ejector, slim, and reverse slim
- Meets CFA standards for known compatibility and reliability
- Locating peg distance has two optional choices: 38.74 mm and 40.16 mm
- Optional 1.4 mm board standoff enables board population
APPLICATIONS
- Industrial equipment
- In-vehicle computers
- Digital cinema cameras
- High-end DSLRs
- Recorders
SPECIFICATION
| Push Button | Termal Plastic, UL94V-0 Color:Black |
|---|---|
| Cover | Stainless Steel |
| Pivot Shell | Stainless Steel |
| Rated Voltage | 35V/AC Max |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 101C-ESB0-R | 85 KB | PDF: Drawing |  |
