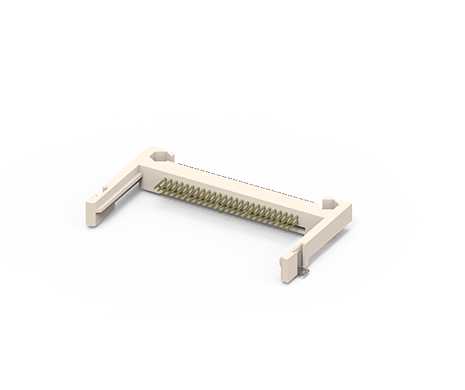

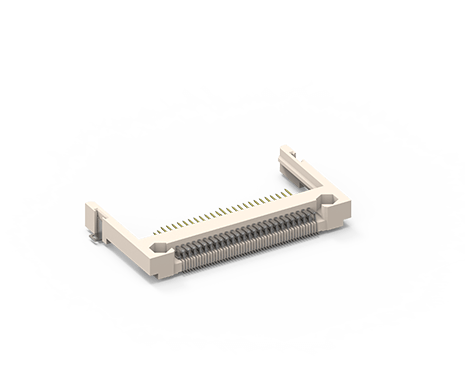

CF Socket, Slim type, Locating Peg 38.74mm, S/O 1.4mm
101D-TACB-R01
CF Socket, Slim type, Top Mount, Locating Peg: 38.74mm, Stand off: 1.4mm, GF
ATTEND's CF Memory Card Sockets are based on the 50-pin parallel ATA interface (PATA) with data transfer speeds of up to 133 MB/s. The 101D series CompactFlash socket is a popular and continuously preferred option for use in digital cameras and industrial equipment.
ATTEND's CF Memory Card Sockets are based on the 50-pin parallel ATA interface (PATA) with data transfer speeds of up to 133 MB/s. The 101D series CompactFlash socket is a popular and continuously preferred option for use in digital cameras and industrial equipment.
Share:
MAIN FEATURES
- Many various types available, including type I/II card hybrid, ejector, slim, and reverse slim
- Meets CFA standards for known compatibility and reliability
- Locating peg distance has two optional choices: 38.74 mm and 40.16 mm
- Optional 1.4 mm board standoff enables board population
APPLICATIONS
- Industrial equipment
- In-vehicle computers
- Digital cinema cameras
- High-end DSLRs
- Recorders
SPECIFICATION
| Current Rating | 0.5AMP |
|---|---|
| Voltage Rating | 100V AC/DC |
| Contact Resistance | 40mΩ |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 500V AC for 1 min. |
| Durability | 10,000 Cycle |
|---|---|
| Insertion Force | 28.8N |
| Extraction Force | 4.9N |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ 10Sec. |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 101D-TACB-R01 | 287 KB | PDF: Drawing |  |
