CF Socket, Type I/II
101B-TAA0-R

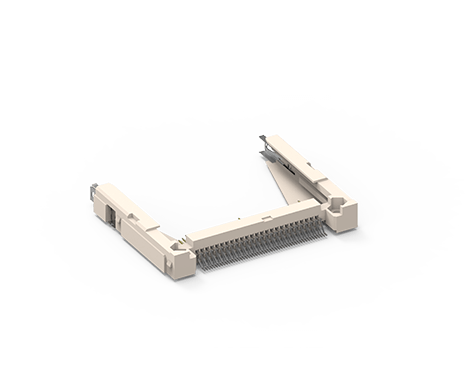

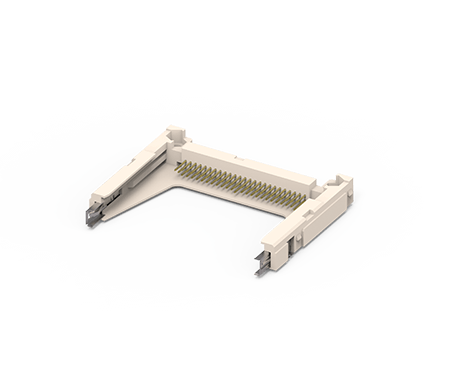

CF Socket, Type I/II, Top Mount, SMT, w/Grounding, 15u''
ATTEND's CF Memory Card Sockets are based on the 50-pin parallel ATA interface (PATA) with data transfer speeds of up to 133 MB/s. The 101D series CompactFlash socket is a popular and continuously preferred option for use in digital cameras and industrial equipment.
ATTEND's CF Memory Card Sockets are based on the 50-pin parallel ATA interface (PATA) with data transfer speeds of up to 133 MB/s. The 101D series CompactFlash socket is a popular and continuously preferred option for use in digital cameras and industrial equipment.
Share:
MAIN FEATURES
- Many various types available, including type I/II card hybrid, ejector, slim, and reverse slim
- Meets CFA standards for known compatibility and reliability
- Locating peg distance has two optional choices: 38.74 mm and 40.16 mm
- Optional 1.4 mm board standoff enables board population
APPLICATIONS
- Industrial equipment
- In-vehicle computers
- Digital cinema cameras
- High-end DSLRs
- Recorders
SPECIFICATION
| Insulator | Thermal Plastic LCP UL94V-0 Color: White |
|---|---|
| Contacts | Cooper Alloy |
| Mount ear | Cooper Alloy |
| Underplated | 50μ”~100μ”Nickel |
|---|---|
| Contact area | 15μ”Selective Gold |
| Solder Tails Area | 100μ”~200μ” Tin/Lead Free (Matte Tin) |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 101B-TAA0-R | 122 KB | PDF: Drawing |  |
| 3D | 101B-TAA0-R | 357 KB | RAR: 3D File | |
