HDMI Connector A Type, R/A SMT Type

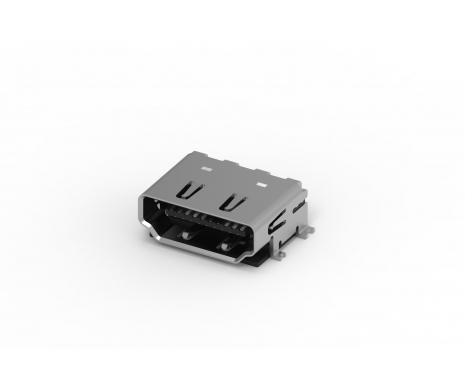

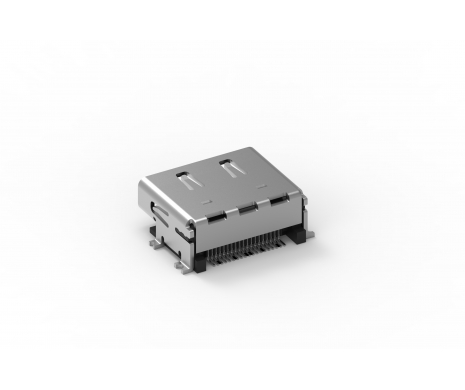

HDMI Connector , A Type Receptacle, Right Angle, SMT, With Peg, 15u"

HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.
Material and Finish
Insulation MaterialL.C.P.+30% Glass Filled, UL94V-0, Black
Contact MaterialBrass (C2680-EH), t=0.2mm
Shell MaterialSPCC
Contact Area Plated15u" Gold for One Side Plated Over 50u" Nickel
Solder Plated100u" Tin Plated
Material and Finish
Shell Plated50u" Nicket Plated
Current Rating0.5 Apm Min.
Insulation ResistanceUnmated: 100 MΩ Min.
Mated: 10 MΩ Min.
Contact Resistance10mΩ max.
Dielectric Withstanding Voltage300V AC
Operation Temperature-20℃ TO +85℃
Drawing206A-SABN134 KBPDF: DrawingDownload
3D206A-SABN441 KBRAR: 3D FileDownload
