HDMI Connector A Type, R/A SMT Type
206A-SEAN-R03

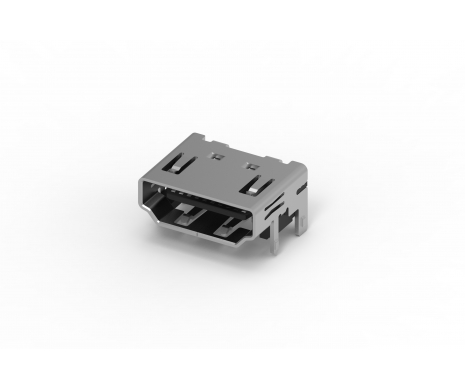

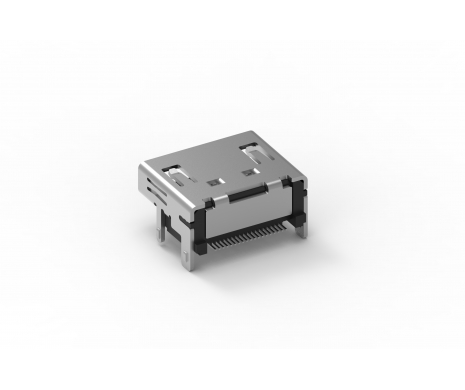

HDMI Connector, A Type Receptacle, Right Angle, SMT, 15u''

HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.
SPECIFICATION
ELECTRICAL
Current Rating0.5A per pin
Voltage Rating40V AC/DC
Contact Resistance60mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500V AC
MECHANICAL
Durability10000 Cycle
Insertion Force44.1N Max
Extraction Force9.8~39.2N
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃
Recommended PCB Thickness1.0mm
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing206A-SEAN-R03222 KBPDF: DrawingDownload
3D206A-SEAN-R03493 KBRAR: 3D FileDownload
