HDMI Connector A Type, R/A SMT Type, w/Flange
206B-SEAN-R01

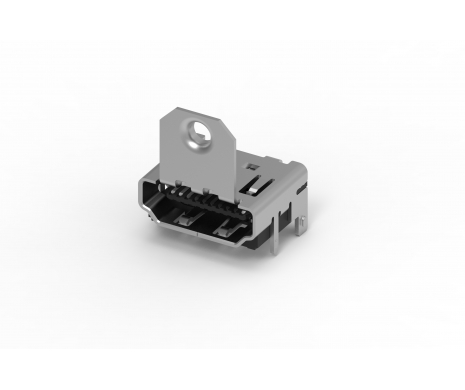

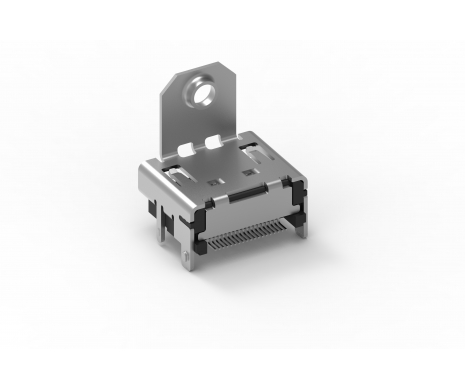

HDMI Connector, A Type Receptacle, Right Angle, SMT, with Flange, 15u''
HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.
HDMI stands for High Definition Multimedia Interface. It is capable of sending higher quality information to a device than its analog counterparts. The information which sent over via HDMI is uncompressed digital video/audio data, because it could transfer the video/audio signal in a single cable same time, that could save PCB design space effectively.
Share:
SPECIFICATION
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 40V AC/DC |
| Contact Resistance | 60mΩ |
| Insulation Resistance | 100MΩ |
| Dielectric Withstanding Voltage | 500V AC |
| Durability | 10000 Cycle |
|---|---|
| Insertion Force | 44.1N Max |
| Extraction Force | 9.8~39.2N |
| Operating temperature range | -40℃~+85℃ |
|---|---|
| Storage temperature range | -40℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|---|
| Recommended PCB Thickness | 1.0mm |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 206B-SEAN-R01 | 206 KB | PDF: Drawing |  |
| 3D | 206B-SEAN-R01 | 610 KB | RAR: 3D File | |
