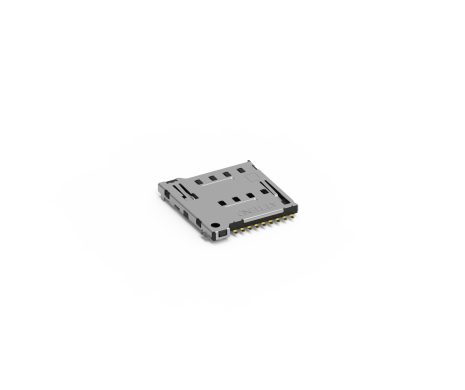

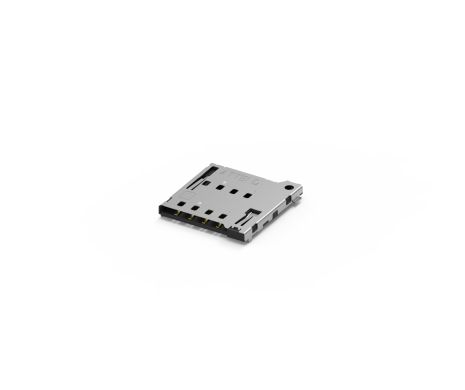

Micro SIM Socket, Push-Push Type
115Q-BCA0
Micro SIM Card Socket, Push-Push Type, 8 Pin, SMT, with Switch, 5u''

SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of Micro SIM, Mini-SIM, and the Nano-SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
Share:
MAIN FEATURES

*
INTRODUCTION:
  • Card detection switch (Normally Close)
  • Mating cycles 5,000 times
  • Low profile 1.6mm height
*
APPLICATION:
  • IIOT
  • WIFI Module
  • Smart Meter
  • LTE Router
  • IPC / POS
  • Vehicle Tracking
SPECIFICATION
ELECTRICAL
Current Rating0.5A DC/AC
Voltage Rating10V DC/AC
Contact ResistanceP1~P8: 100mΩ Max.
Contact ResistanceCD: 140mΩ Max.
Insulation Resistance1000MΩ Min.
Dielectric Withstanding Voltage500VAC for 1 minute
MECHANICAL
Durability5,000 Cycle
Insertion Force10N Max.
Extraction Force0.5N Min.
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115Q-BCA0280 KBPDF: DrawingDownload
3D115Q-BCA0448 KBRAR: 3D FileDownload
Datasheet115Q-BCA0432 KBPDF:SpecDownload
