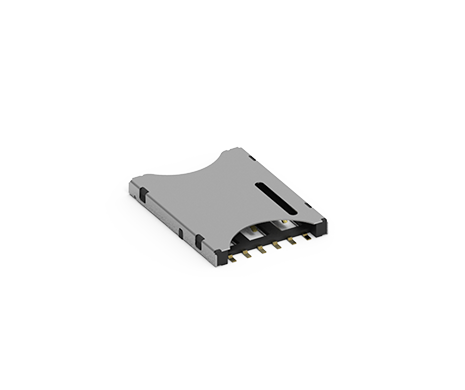

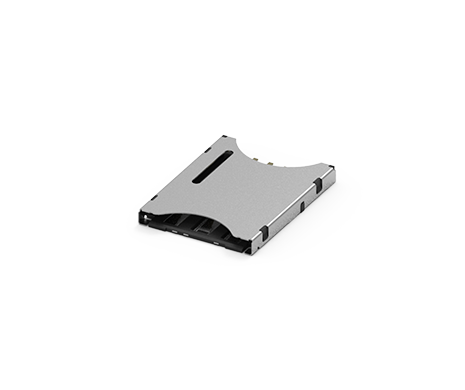

Nano SIM Socket, Push-Pull Type
115U-A000
Nano SIM Card Connector, Push-Pull Type, 6 Pin, H=1.3mm, 10u"

The Nano SIM (also known as the 4FF) card only measure 12.3 × 8.8 × 0.67 mm, the original design purpose was fit the mobile device. Even it reduces the area, it still maintaining the existing contact arrangements and provide all designer another solution to saving the cost in PCB layout design. As the professional communication solution provider, ATTEND Tech offering the maximizing options to fit with any request, including the bar push eject type with multiple tray option, push-push type, hinge type and dual bar push eject type.
MAIN FEATURES
*
APPLICATION:
  • IIOT
  • WIFI Module
  • Smart Meter
  • LTE Router
  • IPC /  POS
  • Vehicle Tracking
SPECIFICATION
ELECTRICAL
Current Rating1A max.
Voltage Rating30V
Contact Resistance100mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability5,000 Cycle
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115U-A000161 KBPDF: DrawingDownload
3D115U-A000217 KBRAR: 3D FileDownload
Datasheet115U-A000296 KBPDF:SpecDownload
