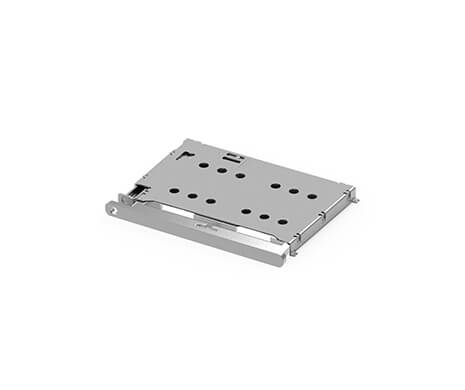

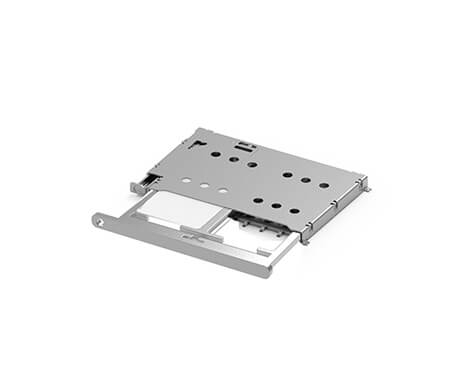

Dual Nano SIM Socket,Tray Eject Type
115S-BS00
Nano SIM Socket Dual Card Tray Eject Type
ATTEND’s Nano SIM card (4FF) measures just 12.3 × 8.8 × 0.67 mm, originally designed for mobile devices. Despite its compact size, it maintains existing contact arrangements, offering a cost-effective PCB layout solution. ATTEND has redesigned the common vertical slot to a horizontal symmetric layout, reducing the risk of damage to the inner SIM card. As a leading communication solution provider, ATTEND offers various options, including dual-card tray eject types with vibration resistance and high tray retention, ensuring stable and reliable performance across different environments.
ATTEND’s Nano SIM card (4FF) measures just 12.3 × 8.8 × 0.67 mm, originally designed for mobile devices. Despite its compact size, it maintains existing contact arrangements, offering a cost-effective PCB layout solution. ATTEND has redesigned the common vertical slot to a horizontal symmetric layout, reducing the risk of damage to the inner SIM card. As a leading communication solution provider, ATTEND offers various options, including dual-card tray eject types with vibration resistance and high tray retention, ensuring stable and reliable performance across different environments.
Share:
- 分享至LINE
- 分享至Twitter
- 分享至Pinterest
- 分享至Facebook
- 分享至Iinkedin
- 扫一扫分享至微信
扫一扫分享至微信
AVAILABLE ACCESSORIES
MAIN FEATURES
Interstate Vehicle Tracking Solution
Designed for reliable vehicle tracking, this slim and compact solution ensures smooth and stable signal operations. The mechanical lock design guarantees optimal insert and eject performance, while the unique recessed push bar design prevents shifting issues during user operation.
Designed for reliable vehicle tracking, this slim and compact solution ensures smooth and stable signal operations. The mechanical lock design guarantees optimal insert and eject performance, while the unique recessed push bar design prevents shifting issues during user operation.
Symmetric Placement Slot Design
To reduce damage during nano-SIM card swaps, we’ve redesigned the standard vertical slot into a horizontal symmetric placement. This innovation ensures that the inner SIM card no longer faces double the risk of damage compared to the outer one.
The Tray Eject series also provides two models: the 115S-ACA0, which offers a single Nano SIM card connector, and the 115S-BS00, which features dual Nano SIM card connectors. The trays in this series are made from metal, resulting in a low profile compared to their plastic counterparts, thus reducing the overall height of the card connectors and saving space. Be sure to complete purchases by also acquiring the 115S-ACA2 (to be used with the 115S-ACA0) and the 115S-BT02 (to be used with the 115S-BS00) trays.
To reduce damage during nano-SIM card swaps, we’ve redesigned the standard vertical slot into a horizontal symmetric placement. This innovation ensures that the inner SIM card no longer faces double the risk of damage compared to the outer one.
The Tray Eject series also provides two models: the 115S-ACA0, which offers a single Nano SIM card connector, and the 115S-BS00, which features dual Nano SIM card connectors. The trays in this series are made from metal, resulting in a low profile compared to their plastic counterparts, thus reducing the overall height of the card connectors and saving space. Be sure to complete purchases by also acquiring the 115S-ACA2 (to be used with the 115S-ACA0) and the 115S-BT02 (to be used with the 115S-BS00) trays.
Upgrade Tray of Version 2
The upgraded Version 2 Tray securely clips the Nano SIM card in place. Even when the SIM tray is inserted upside down or in a vertical position, you don't have to worry about the SIM card falling out.
The upgraded Version 2 Tray securely clips the Nano SIM card in place. Even when the SIM tray is inserted upside down or in a vertical position, you don't have to worry about the SIM card falling out.
APPLICATIONS
- elematics and V2X
- IIoT
- Smart meters
- Gateways and routers
- M2M
- Mobile devices
- Security and surveillance
SPECIFICATION
Current Rating | 0.5A max. |
---|---|
Voltage Rating | 10VAC/DC |
Contact Resistance | 50mΩ |
Insulation Resistance | 1000MΩ |
Dielectric Withstanding Voltage | 500VAC |
Durability | 2,000 Cycle |
---|---|
Tray Insertion Force | 10N max. |
Tray Extraction Force | 3N min. |
Contact Normal Force | 0.2N min. per pin |
Operating temperature range | -40°C~+105°C |
---|---|
Storage temperature range | -40°C~+105°C |
Recommended IR Reflow Temperature |
---|
