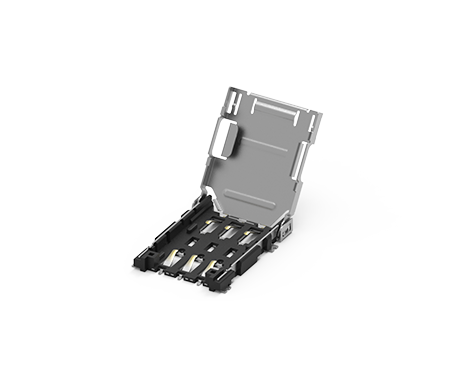

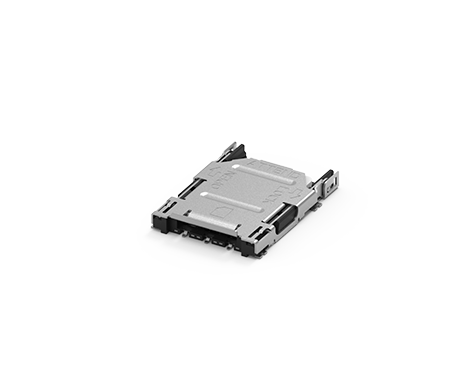

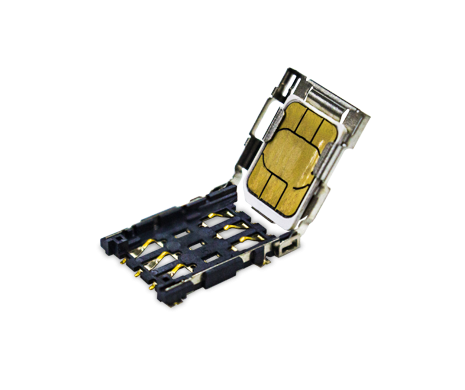

Nano SIM Socket, Hinge Type
115V-AD00
Nano SIM Card Connector, Hinge Type, 6 Pin, H=1.35mm, 10u''
The Nano SIM (also known as the 4FF) card only measure 12.3 × 8.8 × 0.67 mm, the original design purpose was fit the mobile device. Even it reduces the area, it still maintaining the existing contact arrangements and provide all designer another solution to saving the cost in PCB layout design. As the professional communication solution provider, ATTEND Tech offering the maximizing options to fit with any request, including the bar push eject type with multiple tray option, push-push type, hinge type and dual bar push eject type.
The Nano SIM (also known as the 4FF) card only measure 12.3 × 8.8 × 0.67 mm, the original design purpose was fit the mobile device. Even it reduces the area, it still maintaining the existing contact arrangements and provide all designer another solution to saving the cost in PCB layout design. As the professional communication solution provider, ATTEND Tech offering the maximizing options to fit with any request, including the bar push eject type with multiple tray option, push-push type, hinge type and dual bar push eject type.
Share:
- 分享至LINE
- 分享至Twitter
- 分享至Pinterest
- 分享至Facebook
- 分享至Iinkedin
- 扫一扫分享至微信
扫一扫分享至微信
MAIN FEATURES

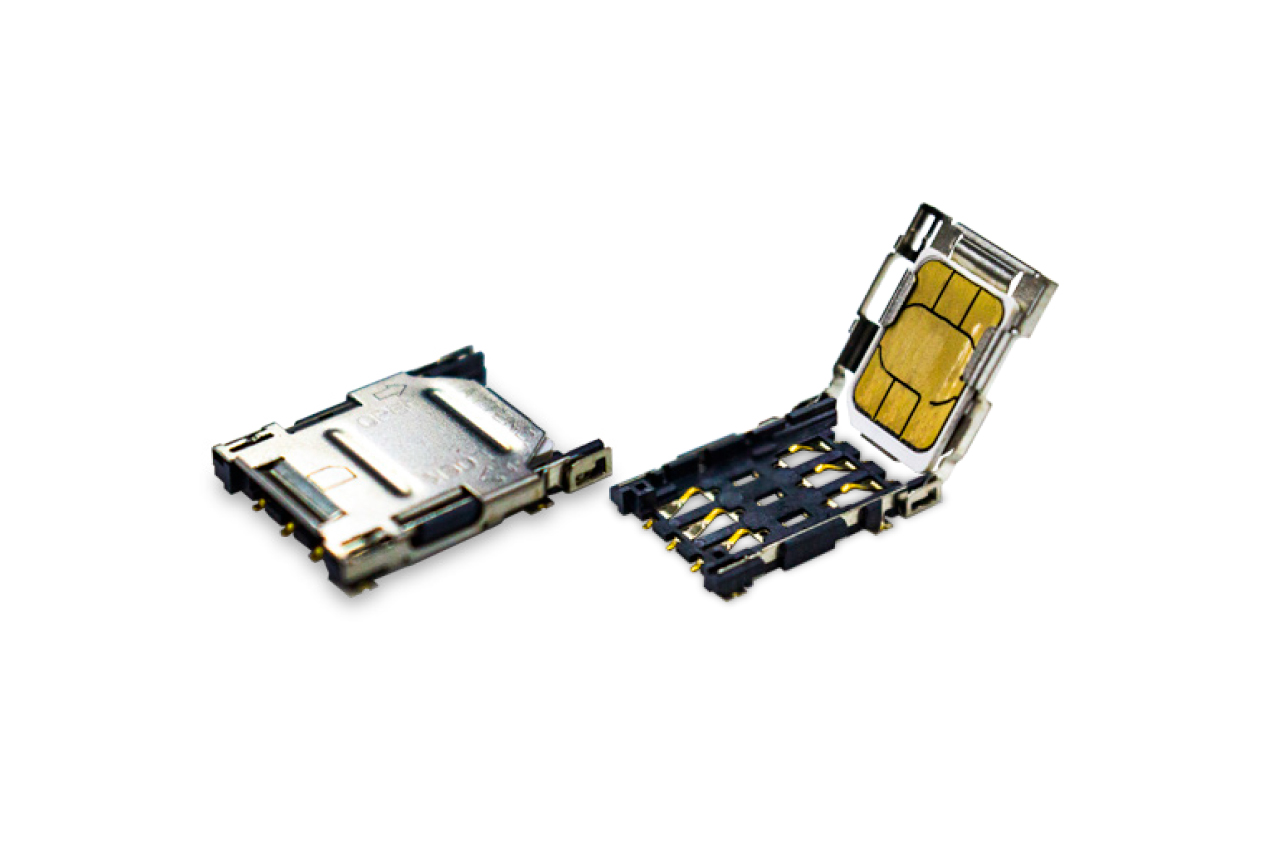

Conclusion:
Featuring on high durability and industry-leading stable design, with a wide range operating temperature from -40°C to 105°C.
Featuring on high durability and industry-leading stable design, with a wide range operating temperature from -40°C to 105°C.
- Nano SIM card holder bump design.
- Wide-range operating temperature from -40°C to 105°C.
- Certified with EN/IEC 60721 vehicle environmental conditions
Application:
- Intelligent transportation system
- In-vehicle computer
- Infrastructure for commercial IoT
SPECIFICATION
Current Rating | 0.5A max. |
---|---|
Voltage Rating | 10VAC/DC |
Contact Resistance | 50mΩ, after 100mΩ Max. |
Insulation Resistance | 1000MΩ |
Dielectric Withstanding Voltage | 500VAC |
Terminal Durability | 5,000 Cycle |
---|---|
Contact Normal Force | 0.3N min. per pin |
Open & Lock Durability | 100 cycles |
Open & Lock Force | 1.5N ~ 20N with card |
Operating temperature range | -40°C~+105°C |
---|---|
Storage temperature range | -40°C~+105°C |
Recommended IR Reflow Temperature | 260°C |
---|
