Dual SIM Socket, Push-Pull Type,
115H-BA00

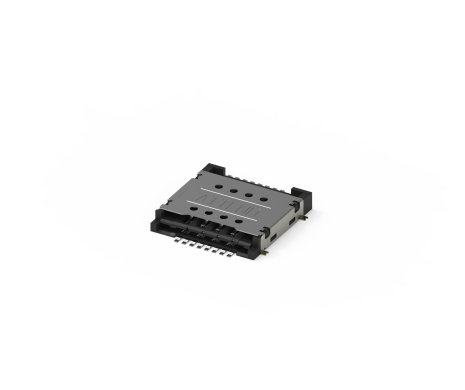

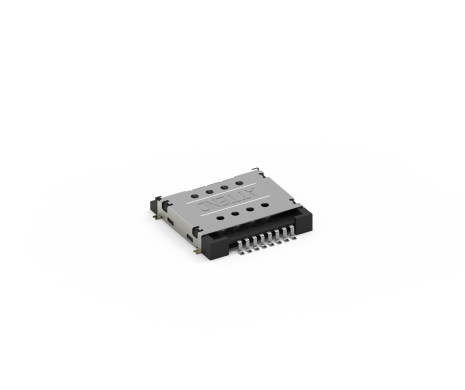

Dual SIM Card Connector, Push-Pull Type, H=3.0 mm,GF

SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of Micro SIM, Mini-SIM, and the Nano-SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
MAIN FEATURES
*
INTRODUCTION:

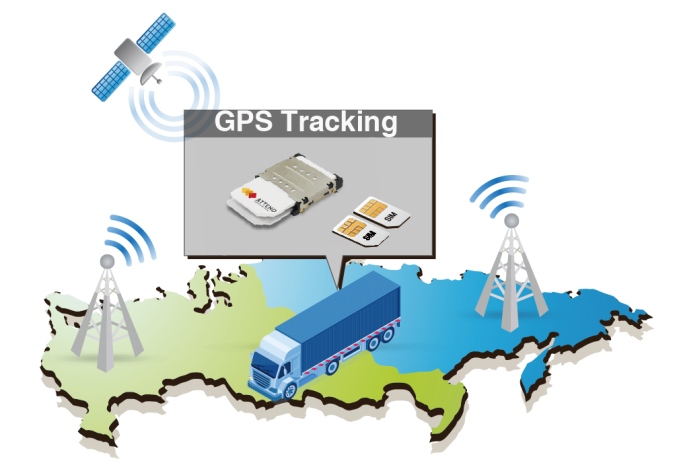

With Dual SIM, the device can readily switch from one Mobile Network Operator to another automatically when signal weakness happens.

When Traveling aboard, the device will switch SIM cards automatically to reduce the chance of signal loss efficiently.
*
APPLICATION:
  • IIOT
  • WIFI Module
  • Smart Meter
  • LTE Router
  • IPC / POS
  • Vehicle Tracking
SPECIFICATION
ELECTRICAL
Current Rating0.5A per pin
Voltage Rating100V AC/DC
Contact Resistance50mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability5,000 Cycle
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃ 10sec
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115H-BA00174 KBPDF: DrawingDownload
3D115H-BA00656 KBRAR: 3D FileDownload
Datasheet115H-BA00144 KBPDF:SpecDownload
