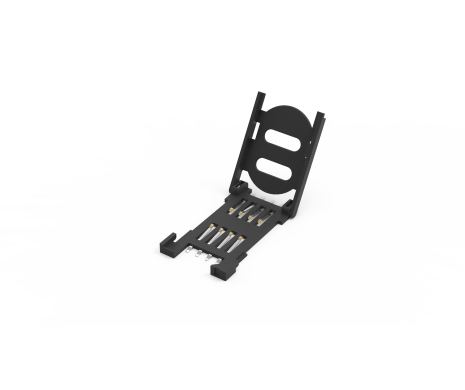

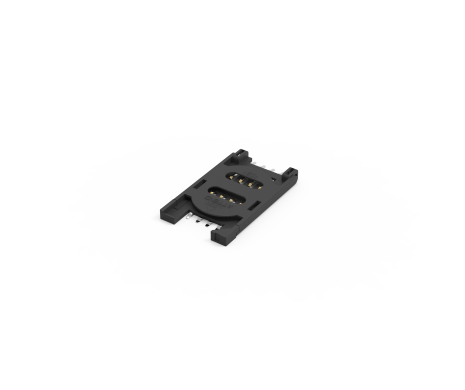

SIM Card Socket, Plastic Hinge Type 8 Pin
115B-BAA0-R01
SIM Card Connector, Plastic Hinge Type, 8 Pin, SMT, GF

SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) number securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of mini SIM, Micro SIM and Nano SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
MAIN FEATURES
*
APPLICATION:
  • IIOT
  • WIFI Module
  • Smart Meter
  • LTE Router
  • IPC / POS
  • Vehicle Tracking
SPECIFICATION
ELECTRICAL
Current Rating0.5A per pin
Voltage Rating30V AC/DC
Contact Resistance30mΩ
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage500V AC

MECHANICAL
Durability5,000 Cycle
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Storage temperature range-40°C~+85°C
SOLDER ABILITY
Recommended IR Reflow Temperature260℃ 10sec
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115B-BAA0-R01174 KBPDF: DrawingDownload
3D115B-BAA0-R01204 KBRAR: 3D FileDownload
Datasheet115B_Spec331 KBPDF:SpecDownload
