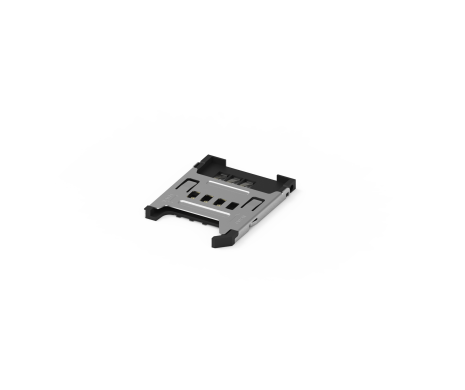

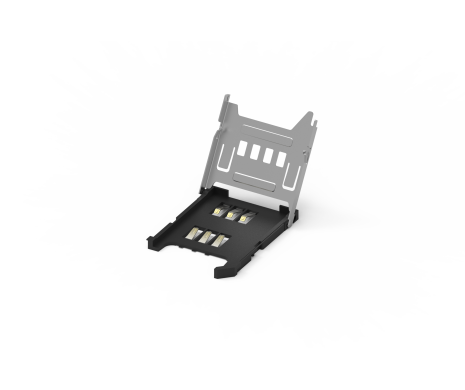

SIM Card Socket, Metal Hinge Type
115G-AAAA-R
SIM Card Connector, Metal Hinge Type, 6 Pin, SMT, GF
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) number securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of mini SIM, Micro SIM and Nano SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) number securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of mini SIM, Micro SIM and Nano SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
Share:
MAIN FEATURES
APPLICATION:
- IIOT
- WIFI Module
- Smart Meter
- LTE Router
- IPC / POS
- Vehicle Tracking
SPECIFICATION
| Housing | Hi/ Temp. UL 94V-0, Color: Black |
|---|---|
| Contact | Copper Alloy (T=0.15mm) |
| Cover | Stainless Steel (T=0.2mm) |
| Current Rating | 1.0 AMP. Max. |
|---|---|
| Dielectric Withstanding Voltage | 500V AC R.M.S For One Minute. |
| Insulation Resistance | 1000MΩ Min At 500V DC. |
| Contact Resistance | 30mΩ Max. |
| Operating Temperature | -40 ℃ to +85 ℃ |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 115G-AAAA-R | 174 KB | PDF: Drawing |  |
| 3D | 115G-AAAA-R | 225 KB | RAR: 3D File | |
| Datasheet | 115G-AAAA-R | 283 KB | PDF:Spec | |
