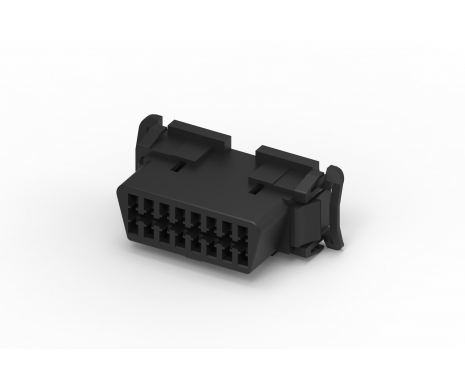

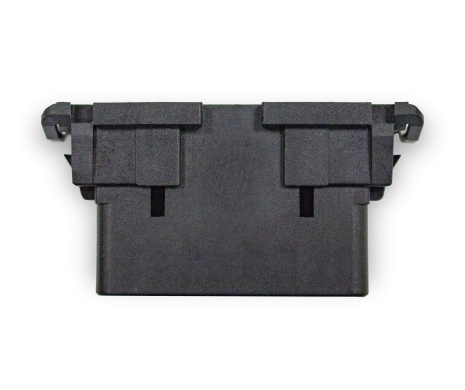

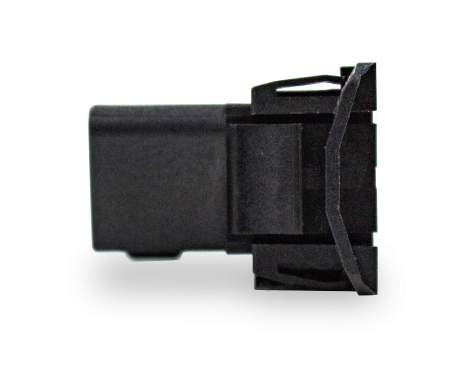

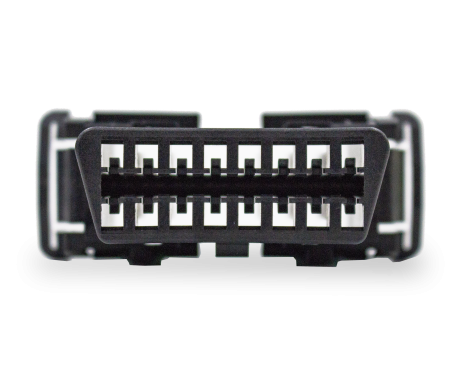

OBDII, Type A/B Female Connector, Housing, Mounting Ears
226B-H003
OBDII, Type A/B Female Connector, Housing, Mounting Ears

The OBDII port is designed for vehicle scanning which enables the mechanic to read DTCs for the repairment or maintenance. ATTEND’s OBD-II series includes Type-A supporting 12 voltage and Type-B supporting 24 voltage for your option to benefit your design of automotive devices.

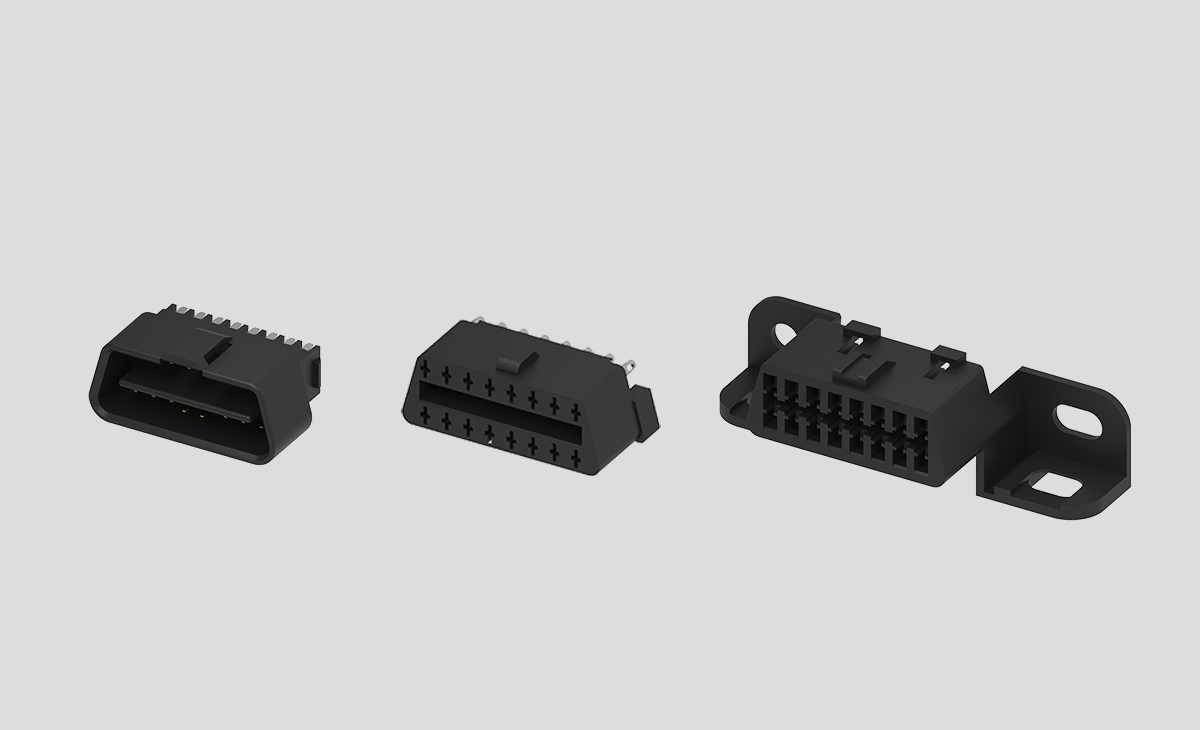

AVAILABLE ACCESSORIES
SPECIFICATION
ELECTRICAL
Current Rating6A MAX
Voltage Rating30V DC
Contact Resistance100MΩ Min
Insulation Resistance1000MΩ
Dielectric Withstanding Voltage1000VAC
MECHANICAL
Durability200 Cycle
Insertion Force142N max.
Extraction Force88N max
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing226B-H00351 KBPDF: DrawingDownload
Drawing226B-A001249 KBPDF: Accessory DrawingDownload
Drawing226B-T00248 KBPDF: Accessory DrawingDownload
