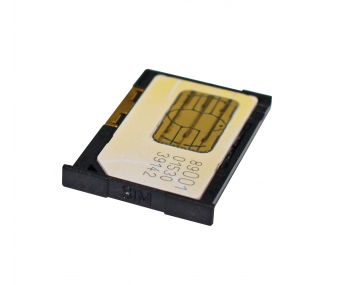

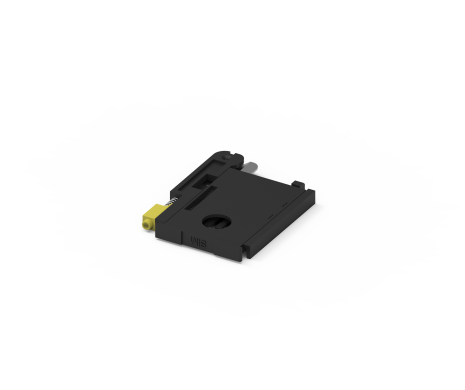

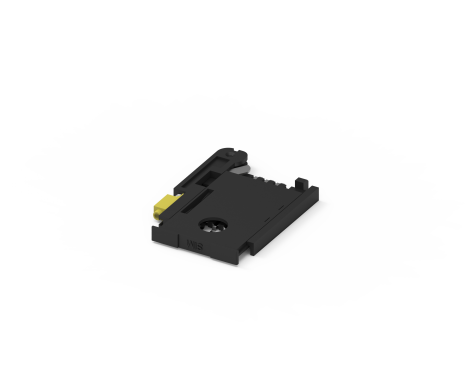

SIM Card Socket, Bar Push Type 6 Pin
115T-AAA1
SIM Card Socket, Bar Push Type, 6 Pin, w/Switch, 1u"

SIM card connector series is a well-known integrated circuit module which mainly used to store the International Mobile Subscriber Identity (IMSI) number securely, and its related key to identifying subscribers on mobile devices. Sim card format has been shrunk gradually because the design tends to be miniature and portable, the result is the development of mini SIM, Micro SIM and Nano SIM. ATTEND offers multiple selections, including push-push, push-pull, hinge, bar push, holder, and eject type. Most of them are also featured in stability, durability and a wide range of operating temperatures as a perfect tracking solution for embedded and industrial systems.
AVAILABLE ACCESSORIES
MAIN FEATURES
*
APPLICATION:
  • IIOT
  • WIFI Module
  • Smart Meter
  • LTE Router
  • IPC / POS
  • Vehicle Tracking
SPECIFICATION
ELECTRICAL
Current1A Max, 10u A Min.
Voltage50V Max
Contact Resistance50mΩ
Insulation Resistance1,000MΩ / 500V DC
Dielectric Withstanding Voltage500V AC at 1 minute
MECHANICAL
Durability5,000 Cycle Min.
Press Force0.5N
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR-Reflow Temperature260℃ 10Sec
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing115T-AAA1141 KBPDF: DrawingDownload
3D115T-AAA1362 KBRAR: 3D FileDownload
Drawing115-0000449 KBPDF: DrawingDownload
Datasheet115T Series Spec321 KBPDF:SpecDownload
