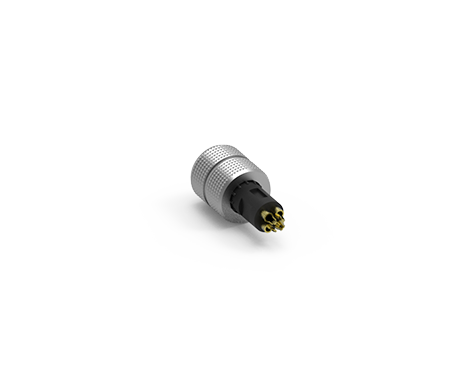

• Connector Solution 220A-XXFO0

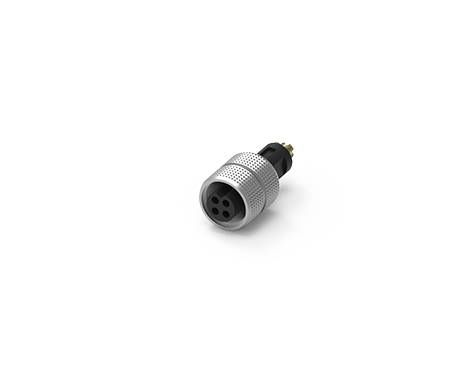

  • Connector Solution 220A-XXFO0
  • Connector Solution 220A-XXFO0
  • Connector Solution 220A-XXFO0
M5 A Code, Plug, Female, Overmold with cable
220A-XXFO0
M5 A Code, Plug for Cable, Female Pins, Overmold with cable

ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
Share:
MAIN FEATURES
Cable Assembly Ordering Instructions
*
•    Four shell sizes available: M5, M8, M12, and M23
•    Receptacle and plug available: PCB, solder, and cable type
•    Cable type two solutions: Overmold or field installable
•    Coding system A, D, and X
•    Waterproof (IP67)
•    2- to 12-pin contact position option
APPLICATIONS
Industrial networks
  • Industrial networks
  • Fieldbus applications
  • Power supplies
  • Automation equipment
  • Sensors

Product Specification Comparison Table
Part NumberPin AssignmentPin Count
             220A-02FO0             Pin Assignment 2pin2Pin
220A-04FO0Pin Assignment 4pin4Pin



SPECIFICATION
ELECTRICAL
Current Rating1A
Voltage Rating60V
ENVIRONMENTAL
Operating temperature range-20°C~+85°C
Waterproof LevelIP67
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing220A-04FO0110 KBPDF: DrawingDownload
3D220A-04FO0769 KBRAR: 3D FileDownload
Drawing220A-02FO0117 KBPDF: DrawingDownload
Datasheet220 Series Spec464 KBPDF:SpecDownload
