M8 A Code, Male, Straight Type, Rear Fastened
219A-XXMAF

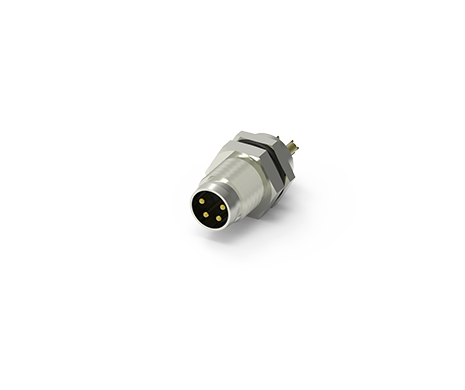

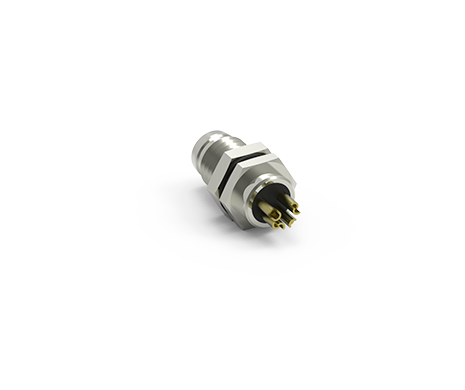

M8 A Code Receptacle, Male Pins, Straight Type, Rear Fastened

ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
MAIN FEATURES
Panel Mount Ordering Instructions
*
•    Four shell sizes available: M5, M8, M12, and M23
•    Receptacle and plug available: PCB, solder, and cable type
•    Cable type two solutions: Overmold or field installable
•    Coding system A, D, and X
•    Waterproof (IP67)
•    2- to 12-pin contact position option
APPLICATIONS
Industrial networks
  • Industrial networks
  • Fieldbus applications
  • Power supplies
  • Automation equipment
  • Sensors

Product Specification Comparison Table
Part NumberPin AssignmentPin Count
             219A-03MAF             Pin Assignment 3pin3Pin
219A-04MAFPin Assignment 4pin4Pin
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
             219A-05MAF             Pin Assignment 5pin5Pin
219A-05MAF-01Pin Assignment 5pin5Pin
219A-08MAFPin Assignment 8pin8Pin

SPECIFICATION
ELECTRICAL
5~8 Pin Current Rating1.5A
5~8 Pin Voltage Rating30VAC/DC
3~4 Pin Current Rating3A
3~4 Pin Voltage Rating50VAC/60VDC
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Waterproof LevelIP67
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing219A-04MAF115 KBPDF: DrawingDownload
3D219A-04MAF165 KBRAR: 3D FileDownload
Drawing219A-05MAF111 KBPDF: DrawingDownload
Drawing219A-05MAF-01118 KBPDF: DrawingDownload
Drawing219A-08MAF111 KBPDF: DrawingDownload
Drawing219A-03MAF107 KBPDF: DrawingDownload
