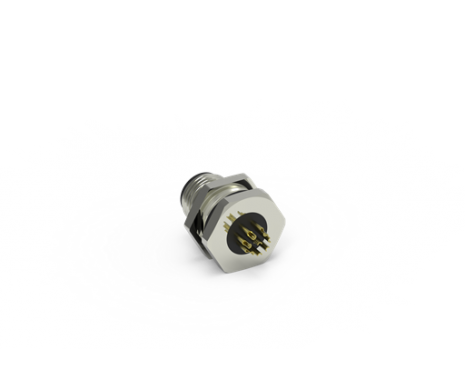

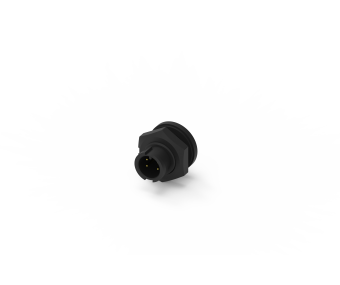

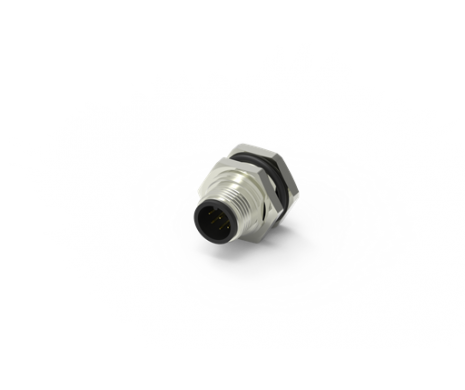

M12 A Code, Male, Solder Type, Front Fastened
216A-XXMAF
M12 A Code Receptacle, Male Pins, Solder Type, Front Fastened
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
Share:
MAIN FEATURES
The most type of all series, it offers support for high power and high frequency. It is considered the best option for high speed signal transmission and power feeding solution for industrial and rugged applications under more demanding environments thanks to its IP67 rating and robustness. In addition, its coding defined under the standards coding helps preventing incorrect mating connection.
| Part Number | Pin Assignment | Pin Count |
|---|---|---|
| 216A-02MAF |  | 2Pin |
| 216A-03MAF |  | 3Pin |
| 216A-04MAF |  | 4Pin |
| 216A-04MAF-01 | | 4Pin |
| Part Number | Pin Assignment | Pin Count |
|---|---|---|
| 216A-05MAF |  | 5Pin |
| 216A-08MAF |  | 8Pin |
| 216A-12MAF | | 12Pin |
SPECIFICATION
| 2~4 Pin Current Rating | 4A |
|---|---|
| 2~4 Pin Voltage Rating | 250V |
| 5 Pin Current Rating | 4A |
|---|---|
| 5 Pin Voltage Rating | 60V |
| 6~8 Pin Current Rating | 2A |
|---|---|
| 6~8 Pin Voltage Rating | 30V |
| 9~12 Pin Current Rating | 1.5A |
|---|---|
| 9~12 Pin Voltage Rating | 30V |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 216A-02MAF | 77 KB | PDF: Drawing |  |
| 3D | 216A-02MAF | 153 KB | RAR: 3D File | |
| Drawing | 216A-05MAF | 195 KB | PDF: Drawing | |
| 3D | 216A-05MAF | 177 KB | RAR: 3D File | |
| Drawing | 216A-04MAF | 78 KB | PDF: Drawing | |
| 3D | 216A-04MAF | 237 KB | RAR: 3D File | |
| Drawing | 216A-08MAF | 76 KB | PDF: Drawing | |
| 3D | 216A-08MAF | 200 KB | RAR: 3D File | |
| Drawing | 216A-04MAF-01 | 71 KB | PDF: Drawing | |
| Drawing | 216A-03MAF | 79 KB | PDF: Drawing | |
| Datasheet | 216Series Spec | 396 KB | PDF:Spec | |
