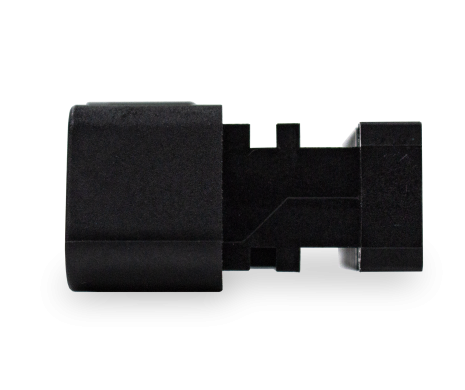

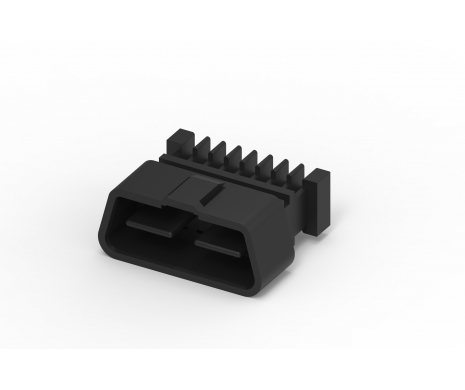

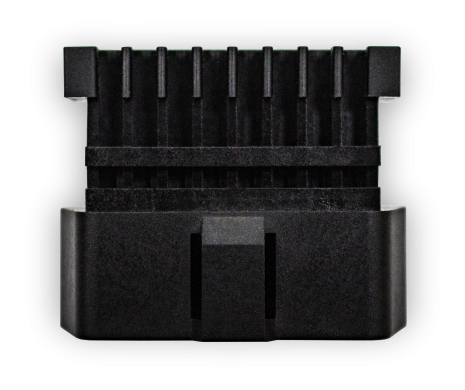

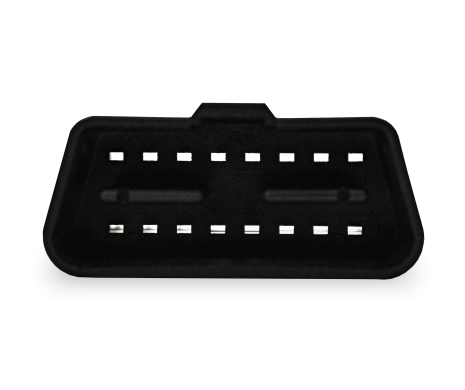

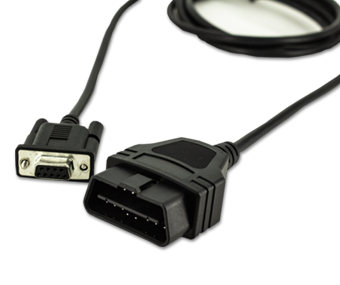

OBDII, Type B Male Connector, Housing, Overmold
226A-H002
OBDII, Type B Male Connector, 16 Pin, 24V, Housing, Overmold
The OBDII port is designed for vehicle scanning which enables the mechanic to read DTCs for the repairment or maintenance. ATTEND’s OBD-II series includes Type-A supporting 12 voltage and Type-B supporting 24 voltage for your option to benefit your design of automotive devices.
The OBDII port is designed for vehicle scanning which enables the mechanic to read DTCs for the repairment or maintenance. ATTEND’s OBD-II series includes Type-A supporting 12 voltage and Type-B supporting 24 voltage for your option to benefit your design of automotive devices.
Share:
AVAILABLE ACCESSORIES
MAIN FEATURES
- Robust housing design for durability and long service life
- Secure mating interface ensuring reliable connectivity
- Multiple configurations: Type A, Type B, Type A/B Female
- Options for solder, right angle DIP, and overmold assembly
- Compliant with OBDII diagnostic standards
APPLICATIONS
- Onboard diagnostics (OBDII)
- ECU programming & testing
- Diagnostic tools & scanners
- Aftermarket devices & telematics
- Fleet management systems
SPECIFICATION
| Current Rating | 6A MAX |
|---|---|
| Voltage Rating | 30V DC |
| Contact Resistance | 100MΩ Min |
| Insulation Resistance | 1000MΩ |
| Dielectric Withstanding Voltage | 1000VAC |
| Durability | 200 Cycle |
|---|---|
| Insertion Force | 142N max. |
| Extraction Force | 88N max |
| Operating temperature range | -40℃~+85℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 226A-H002 | 45 KB | PDF: Drawing |  |
| Drawing | 226A-T001: For Type B Male Overmold | 134 KB | PDF: Accessory Drawing | |
