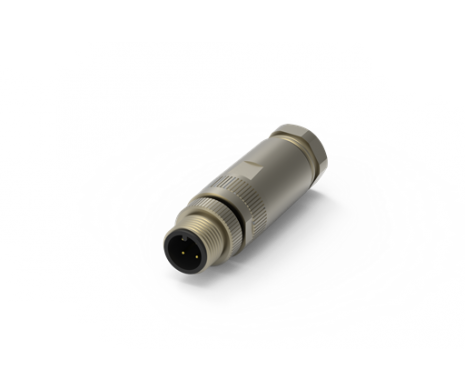

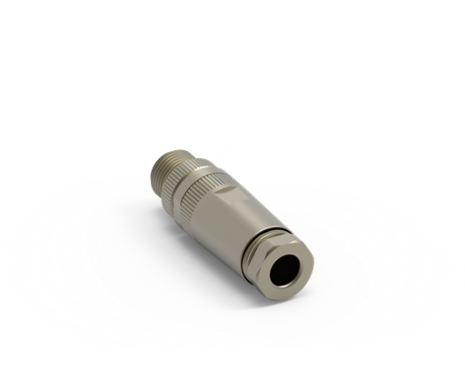

M12 A Code, Plug, Male, Field Installable
216A-XXMF0
M12 A Code, Plug for Cable, Male Pins, Field Installable
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
Share:
MAIN FEATURES
(1).png)
• Four shell sizes available: M5, M8, M12, and M23
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
APPLICATIONS
- Industrial networks
- Fieldbus applications
- Power supplies
- Automation equipment
- Sensors
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216A-04MF0 | 216A-04FF1 216A-04FAR 216A-04FAF 216A-04FSF 216A-04FRF 216A-04FO0 216A-04FF0 216A-04FSA 216A-04FRA |  | 4Pin |
| 216A-05MF0 | 216A-05FF1 216A-05FAR 216A-05FAF 216A-05FSF 216A-05FRF 216A-05FO0 216A-05FF0 216A-05FSA 216A-05FRA |  | 5Pin |
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216A-08MF0 | 216A-08FF1 216A-08FAR 216A-08FAF 216A-08FSF 216A-08FRF 216A-08FO0 216A-08FF0 216A-08FSA 216A-08FRA |  | 8Pin |
| 216A-12MF0 | 216A-08FF1 216A-08FAF 216A-08FSF 216A-08FO0 216A-08FSA |  | 12Pin |
SPECIFICATION
| 2~4 Pin Current Rating | 4A |
|---|---|
| 2~4 Pin Voltage Rating | 250V |
| 5 Pin Current Rating | 4A |
| 5 Pin Voltage Rating | 60V |
| 6~8 Pin Current Rating | 2A |
| 6~8 Pin Voltage Rating | 30V |
| 9~12 Pin Current Rating | 1.5A |
| 9~12 Pin Voltage Rating | 30V |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 216A-08MF0 | 300 KB | PDF: Drawing |  |
| 3D | 216A-08MF0 | 496 KB | RAR: 3D File | |
| Drawing | 216A-04MF0 | 192 KB | PDF: Drawing | |
| Drawing | 216A-05MF0 | 193 KB | PDF: Drawing | |
| Drawing | 216A-12MF0 | 193 KB | PDF: Drawing | |
| Datasheet | Pairing Diagram M Series waterproof connector | 95 KB | | |
| Datasheet | 216Series Spec | 396 KB | PDF:Spec | |
| 3D | 216A-04MF0 | 607 KB | RAR: 3D File | |
| 3D | 216A-05MF0 | 493 KB | RAR: 3D File | |
