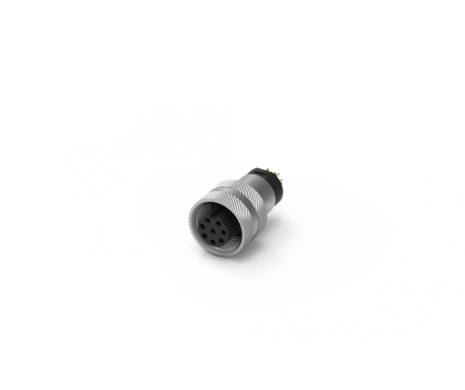

M12 A Code, Plug for Cable, Female Pins, Overmold with cable
216A-XXFO0
M12 A Code, Plug for Cable, Female Pins, Overmold with cable
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
Share:
MAIN FEATURES
(1).png)
• Four shell sizes available: M5, M8, M12, and M23
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
• Receptacle and plug available: PCB, solder, and cable type
• Cable type two solutions: Overmold or field installable
• Coding system A, D, and X
• Waterproof (IP67)
• 2- to 12-pin contact position option
APPLICATIONS
- Industrial networks
- Fieldbus applications
- Power supplies
- Automation equipment
- Sensors
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216A-02FO0 | 216A-02MAF |  | 2Pin |
| 216A-03FO0 | 216A-03MAF |  | 3Pin |
| 216A-04FO0 | 216A-04MF1 216A-04MAR 216A-04MAF 216A-04MSF 216A-04MRF 216A-04MO0 216A-04MF0 |  | 4Pin |
| 216A-05FO0 | 216A-05MF1 216A-05MAR 216A-05MAF 216A-05MSF 216A-05MRF 216A-05MO0 216A-05MF0 |  | 5Pin |
| Part Number | Mate P/N | Pin Assignment | Pin Count |
|---|---|---|---|
| 216A-08FO0 | 216A-08MF1 216A-08MAR 216A-08MAF 216A-08MSF 216A-08MRF 216A-08MO0 216A-08MF0 |  | 8Pin |
| 216A-10FO0 | 216A-10MSF |  | 10Pin |
| 216A-12FO0 | 216A-12MF1 216A-12MAR 216A-12MAF 216A-12MSF 216A-12MRF 216A-12MO0 216A-12MF0 |  | 12Pin |
SPECIFICATION
| 2~4 Pin Current Rating | 4A |
|---|---|
| 2~4 Pin Voltage Rating | 250V |
| 5 Pin Current Rating | 4A |
| 5 Pin Voltage Rating | 60V |
| 6~8 Pin Current Rating | 2A |
|---|---|
| 6~8 Pin Voltage Rating | 30V |
| 9~12 Pin Current Rating | 1.5A |
|---|---|
| 9~12 Pin Voltage Rating | 30V |
| Operating temperature range | -40°C~+85°C |
|---|---|
| Waterproof Level | IP67 |
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 216A-02FO0 | 161 KB | PDF: Drawing |  |
| Drawing | 216A-05FO0 | 250 KB | PDF: Drawing | |
| Drawing | 216A-10FO0 | 159 KB | PDF: Drawing | |
| Drawing | 216A-12FO0 | 232 KB | PDF: Drawing | |
| 3D | 216A-12FO0 | 4587 KB | RAR: 3D File | |
| Drawing | 216A-08FO0 | 229 KB | PDF: Drawing | |
| 3D | 216A-10FO0 | 5346 KB | RAR: 3D File | |
| 3D | 216A-08FO0 | 3117 KB | RAR: 3D File | |
| 3D | 216A-05FO0 | 5856 KB | RAR: 3D File | |
| 3D | 216A-02FO0 | 5172 KB | RAR: 3D File | |
| Drawing | 216A-03FO0 | 159 KB | PDF: Drawing | |
| Drawing | 216A-04FO0 | 159 KB | PDF: Drawing | |
| 3D | 216A-04FO0 | 4955 KB | RAR: 3D File | |
| Datasheet | Pairing Diagram M Series waterproof connector | 95 KB | | |
| Datasheet | 216Series Spec | 396 KB | PDF:Spec | |
