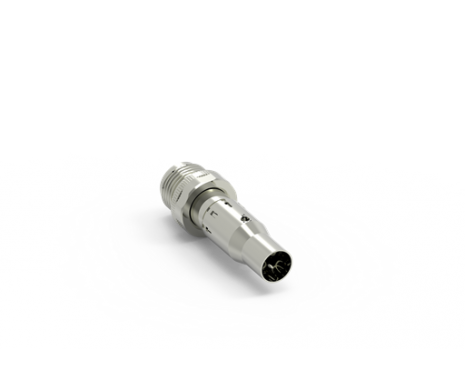

M12 X Code, Plug, Male Pins, For Overmold with Cable
M12 X Code, Plug for Cable, Male Pins, For Overmold with Cable

ATTEND’s M-series circular connectors cover an extensive range which includes M5/8/12/23 connectors that support customers look for solutions based on the industry-proven market standard. Circular connector generally use in industrial automation, Ethernet system, intelligent transportation system, Traffic safety system and outdoor devices for decades.
Cable Assembly Ordering Instructions
 industrial device
The most type of all series, it offers support for high power and high frequency. It is considered the best option for high speed signal transmission and power feeding solution for industrial and rugged applications under more demanding environments thanks to its IP67 rating and robustness. In addition, its coding defined under the standards coding helps preventing incorrect mating connection.
Boost the limited speed: M12 X Code series
ATTEND proudly introducing the M12 X Code series with the passing result after the IEC61076-2-109 standard of M12 X code 500 MHz frequency and ISO11801 testing, it could be an excellent solution for unlocking the speed limit for customer's design.
Product Specification Comparison Table
Part NumberPin AssignmentPin Count
             216X-08MO0             Pin Assignment8Pin
Current Rating0.5 A
Voltage Rating50 VAC / 60 VDC
Operating temperature range-40°C~+85°C
Waterproof LevelIP67
Drawing216X-08MO073 KBPDF: DrawingDownload
3D216X-08MO0401 KBRAR: 3D FileDownload
DatasheetPairing Diagram M Series waterproof connector95 KBPDFDownload
Datasheet216Series Spec396 KBPDF:SpecDownload
