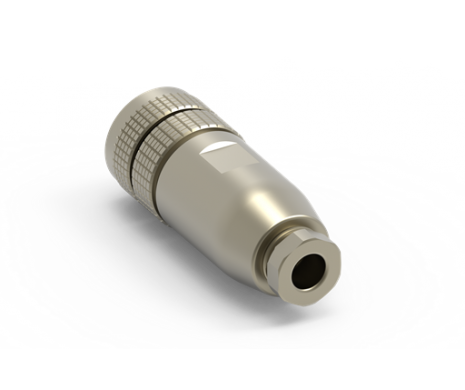

M23 A Code, Plug, 5P Female, Field Installable
221A-05FF0
M23 A Code, Plug for Cable, 5 Pin Female, Field Installable

ATTEND's circular connectors offer 2, 3, 4, 5, 6, 8, 10, and 12 pins in a range of male or female receptacle and plug types. These M5, M8, M12, and M23 connectors feature current ratings from 0.5 A to 20 A and voltage ratings from 50 V to 250 V. They are suitable for almost all field bus specifications and are available in various coding. Multiple contact and shell sizes make these connectors useful for many different designs. Waterproof capabilities make these circular connectors ideal for a broad range of factory automation and industrial applications.
MAIN FEATURES
Cable Assembly Ordering Instructions
*
•    Four shell sizes available: M5, M8, M12, and M23
•    Receptacle and plug available: PCB, solder, and cable type
•    Cable type two solutions: Overmold or field installable
•    Coding system A, D, and X
•    Waterproof (IP67)
•    2- to 12-pin contact position option
APPLICATIONS
Industrial networks
  • Industrial networks
  • Fieldbus applications
  • Power supplies
  • Automation equipment
  • Sensors

SPECIFICATION
ELECTRICAL
Current Rating20A
Voltage Rating250V
ENVIRONMENTAL
Operating temperature range-40°C~+85°C
Waterproof LevelIP67
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing221A-05FF095 KBPDF: DrawingDownload
3D221A-05FF01118 KBRAR: 3D FileDownload
Datasheet221 Series Spec460 KBPDF:SpecDownload
