Mini PCIExpress, H=7.0mm
119A-70A00-R02

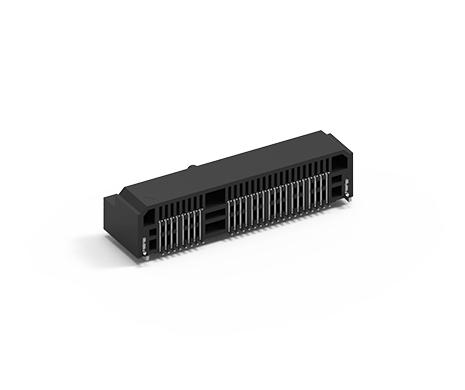

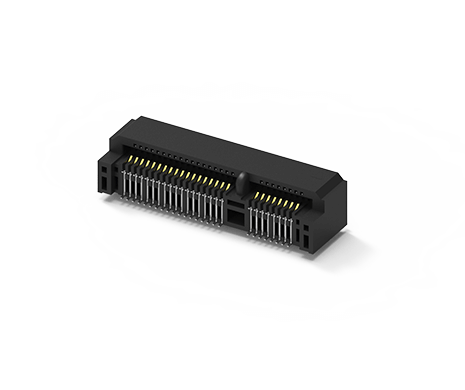

Mini PCIExpress, H=7.0mm, Top Mount, SMT Type
ATTEND Technology's mini PCI and mini PCIe connectors were designed to provide a standardized interface for adding expansion cards to computer systems. These connectors offer a compact form factor. The 114B series mini PCI interface uses a 32-bit, 33 MHz data bus and has 3.3 V or 5 V power connections, totaling 124 pins. The 119A series mini PCIe connector follows the PCI Express standard, providing a high-speed data transfer interface with one differential transmit pair and one differential receive pair. It has 1.5 V or 3.3 V power connections, totaling 52 pins. Both mini PCI and mini PCIe connectors are typically used for adding expansion cards such as Wi-Fi, Bluetooth®, mobile network, and SSD.
ATTEND Technology's mini PCI and mini PCIe connectors were designed to provide a standardized interface for adding expansion cards to computer systems. These connectors offer a compact form factor. The 114B series mini PCI interface uses a 32-bit, 33 MHz data bus and has 3.3 V or 5 V power connections, totaling 124 pins. The 119A series mini PCIe connector follows the PCI Express standard, providing a high-speed data transfer interface with one differential transmit pair and one differential receive pair. It has 1.5 V or 3.3 V power connections, totaling 52 pins. Both mini PCI and mini PCIe connectors are typically used for adding expansion cards such as Wi-Fi, Bluetooth®, mobile network, and SSD.
Share:
AVAILABLE ACCESSORIES
MAIN FEATURES
Multiple mounting options
To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.
To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.
- Height range: 4.0 mm to 9.9 mm
- Optional accessories include a single fixation latch, two dual fixation latches, or two nuts with two screws
- The connector and latch are surface-mount devices
- Compatible PCI Express 1.0 x1 (250 MB/s) and PCI Express 2.0 x1 (500 MB/s)
Multiple height options
ATTEND offers multiple height options, from 4.0 mm to 9.9 mm standoff which provides a flexible design solution.
ATTEND offers multiple height options, from 4.0 mm to 9.9 mm standoff which provides a flexible design solution.
Application
The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.
The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.
- Box PCs
- Edge computing
- Industrial PCs
- Embedded systems
SPECIFICATION
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 50V AC |
| Contact Resistance | 30mΩ |
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 250VAC |
| Durability | 50Cycle |
|---|---|
| Insertion Force | 50gf per pin min |
| Extraction Force | 180gf per pin min. |
| Operating temperature range | -40℃~+90℃ |
|---|---|
| Storage temperature range | -40℃~+90℃ |
| Recommended IR Reflow (Wave Soldering) Temperature | 260℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 119A-70A00-R02 [Fixation by screw/nut] | 453 KB | PDF: Drawing |  |
| 3D | 119A-70A00-R02 | 1244 KB | RAR: 3D File | |
| Datasheet | 119A-XXA00-R02 | 312 KB | PDF:Spec | |
| Drawing | 119A-NUT-70-R02 | 184 KB | PDF: Drawing | |
