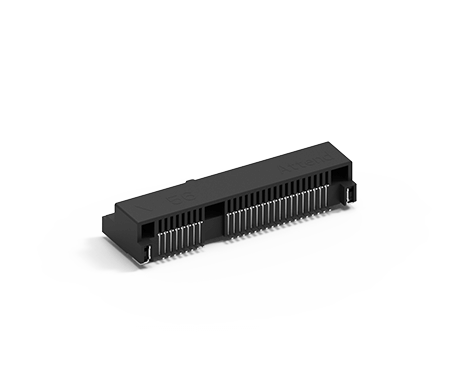

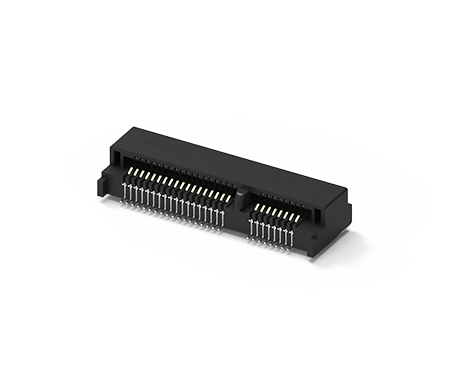

Mini PCIExpress, H=5.6mm
119A-56A00-R02
Mini PCIExpress, H=5.6mm, Top Mount, SMT Type
ATTEND Technology's mini PCI and mini PCIe connectors were designed to provide a standardized interface for adding expansion cards to computer systems. These connectors offer a compact form factor. The 114B series mini PCI interface uses a 32-bit, 33 MHz data bus and has 3.3 V or 5 V power connections, totaling 124 pins. The 119A series mini PCIe connector follows the PCI Express standard, providing a high-speed data transfer interface with one differential transmit pair and one differential receive pair. It has 1.5 V or 3.3 V power connections, totaling 52 pins. Both mini PCI and mini PCIe connectors are typically used for adding expansion cards such as Wi-Fi, Bluetooth®, mobile network, and SSD.
ATTEND Technology's mini PCI and mini PCIe connectors were designed to provide a standardized interface for adding expansion cards to computer systems. These connectors offer a compact form factor. The 114B series mini PCI interface uses a 32-bit, 33 MHz data bus and has 3.3 V or 5 V power connections, totaling 124 pins. The 119A series mini PCIe connector follows the PCI Express standard, providing a high-speed data transfer interface with one differential transmit pair and one differential receive pair. It has 1.5 V or 3.3 V power connections, totaling 52 pins. Both mini PCI and mini PCIe connectors are typically used for adding expansion cards such as Wi-Fi, Bluetooth®, mobile network, and SSD.
Share:
AVAILABLE ACCESSORIES
MAIN FEATURES
Multiple mounting options
To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.
To maximize with customer requested, ATTEND offering multiple mounting options, with single latch, dual latch, and screw & nuts to fit with different design purposes.
- Height range: 4.0 mm to 9.9 mm

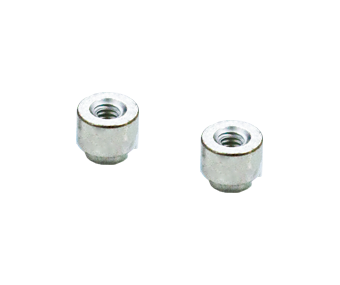

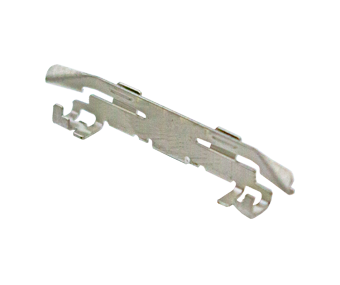

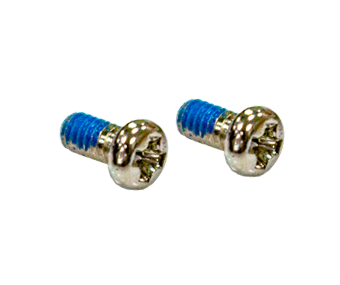

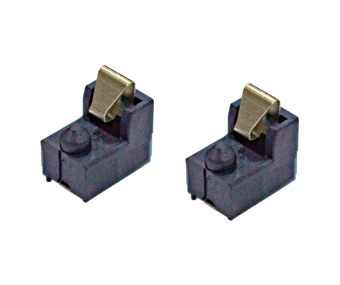

- Optional accessories include a single fixation latch, two dual fixation latches, or two nuts with two screws
- The connector and latch are surface-mount devices
- Compatible PCI Express 1.0 x1 (250 MB/s) and PCI Express 2.0 x1 (500 MB/s)
Multiple height options
ATTEND offers multiple height options, from 4.0 mm to 9.9 mm standoff which provides a flexible design solution.
ATTEND offers multiple height options, from 4.0 mm to 9.9 mm standoff which provides a flexible design solution.
Application
The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.
The Mini PCIe connector is widely applied in different industries, commonly used in wireless networking /Wifi device, ADSL modern, SSD storage, IP set-top box.
- Box PCs
- Edge computing
- Industrial PCs
- Embedded systems
SPECIFICATION
Current Rating | 0.5A per pin |
---|---|
Voltage Rating | 50V DC |
Contact Resistance | 55mΩ max. |
Insulation Resistance | 500MΩ min. |
Dielectric Withstanding Voltage | 300VAC |
Durability | 100Cycle |
---|---|
Insertion Force | 2.3Kgf max. |
Extraction Force | 2.3Kgf max. |
Operating temperature range | -40℃~+85℃ |
---|---|
Storage temperature range | -40℃~+85℃ |
Recommended IR Reflow Temperature | 260℃ 10Sec |
---|
