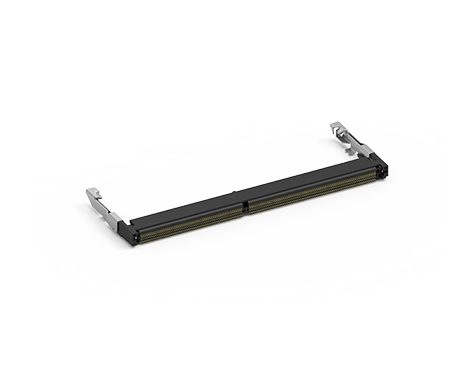

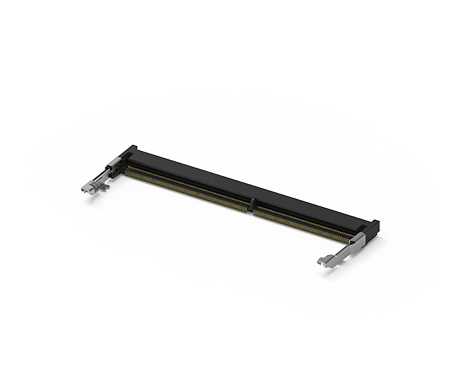

DDR4 SODIMM Socket, Reverse Type, H=4.0mm, Solder Latch
124A-40A13
DDR4 SODIMM Socket, Horizontal 4.0H, RVS, G/F, Black, Reel, Solder PEG

ATTEND's DDR4 SODIMM is a compact yet powerful memory module designed for laptops and space-constrained devices. Utilizing DDR4 technology, it delivers faster data transfer speeds and enhanced performance. ATTEND offers a diverse range of DDR4 SODIMM modules with standard and reverse key positions, GF gold thickness option, and heights of 4.0 mm, 5.2 mm, 8.0 mm, and 9.2 mm. With lower voltage consumption for energy efficiency, its robust design ensures stable system operation. It represents the optimal choice for modern computing, delivering exceptional performance and reliability. DDR4 SO DIMM sockets find applications in mass storage devices, communication equipment, desktop PCs, and instrumentation.
MAIN FEATURES
DDR4 Connector
  • Compact and powerful: perfect for laptops and space-limited devices
  • Enhanced performance: utilizes DDR4 technology for faster data transfer and higher performance
  • Energy efficient: lower voltage design for energy savings
  • Reliable operation: ensures stable and efficient system performance
Automotive
APPLICATIONS:
  • Consumer electronics
  • Networking and telecommunications
  • Information technology
  • Instrumentation and control
  • Healthcare
  • Automotive
  • Industrial automation
  • Education
  • Entertainment and gaming
SPECIFICATION
ELECTRICAL
Current Rating0.6A per pin
Voltage Rating25V AC/DC
Contact Resistance60mΩ
Insulation Resistance100MΩ
Dielectric Withstanding Voltage500VAC
MECHANICAL
Durability50 Cycle
Insertion Force59.8N Max.
Extraction Force44.6N Max.
ENVIRONMENTAL
Operating temperature range-40℃~+85℃
Storage temperature range-40℃~+85℃
SOLDER ABILITY
Recommended IR Reflow Temperature260℃
DOWNLOAD
CATEGORYTITLESIZEFILE TYPEDOWNLOAD
Drawing124A-40A13492 KBPDF: DrawingDownload
3D124A-40A132283 KBRAR: 3D FileDownload
Datasheet124A Series Spec314 KBPDF:SpecDownload
