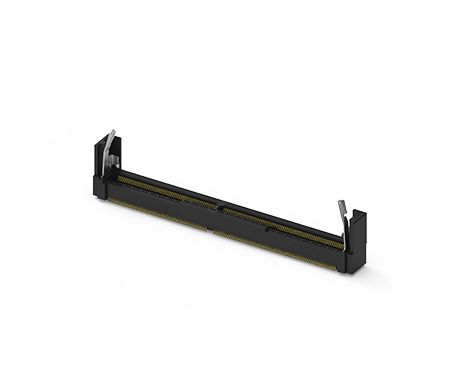

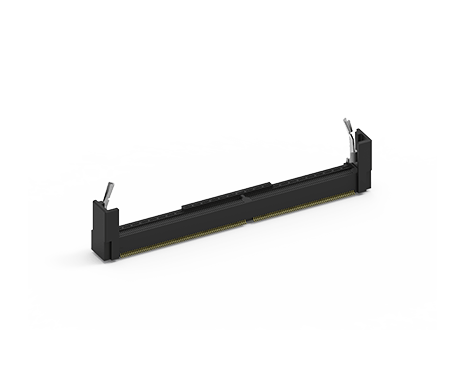

DDR4 SODIMM Socket,Vertical Reverse Type
124B-150A12
SO DIMM DDR4 Socket Vertical Reverse Type, 260 Pin
ATTEND's DDR4 SODIMM is a compact yet powerful memory module designed for laptops and space-constrained devices. Utilizing DDR4 technology, it delivers faster data transfer speeds and enhanced performance. ATTEND offers a diverse range of DDR4 SODIMM modules with standard and reverse key positions, GF gold thickness option, and heights of 4.0 mm, 5.2 mm, 8.0 mm, and 9.2 mm. With lower voltage consumption for energy efficiency, its robust design ensures stable system operation. It represents the optimal choice for modern computing, delivering exceptional performance and reliability. DDR4 SO DIMM sockets find applications in mass storage devices, communication equipment, desktop PCs, and instrumentation.
ATTEND's DDR4 SODIMM is a compact yet powerful memory module designed for laptops and space-constrained devices. Utilizing DDR4 technology, it delivers faster data transfer speeds and enhanced performance. ATTEND offers a diverse range of DDR4 SODIMM modules with standard and reverse key positions, GF gold thickness option, and heights of 4.0 mm, 5.2 mm, 8.0 mm, and 9.2 mm. With lower voltage consumption for energy efficiency, its robust design ensures stable system operation. It represents the optimal choice for modern computing, delivering exceptional performance and reliability. DDR4 SO DIMM sockets find applications in mass storage devices, communication equipment, desktop PCs, and instrumentation.
Share:
MAIN FEATURES
- Compact and powerful: perfect for laptops and space-limited devices
- Enhanced performance: utilizes DDR4 technology for faster data transfer and higher performance
- Energy efficient: lower voltage design for energy savings
- Reliable operation: ensures stable and efficient system performance
APPLICATIONS:
- Consumer electronics
- Networking and telecommunications
- Information technology
- Instrumentation and control
- Healthcare
- Automotive
- Industrial automation
- Education
- Entertainment and gaming
SPECIFICATION
| Current Rating | 0.5A per pin |
|---|---|
| Voltage Rating | 25V AC |
| Contact Resistance | 55mΩ max. |
| Insulation Resistance | 500MΩ |
| Dielectric Withstanding Voltage | 300VAC |
| Durability | 25 Cycle |
|---|---|
| Insertion Force | 30N max. |
| Extraction Force | 30N max. |
| Operating temperature range | -55℃~+85℃ |
|---|---|
| Storage temperature range | -55℃~+85℃ |
| Recommended IR Reflow Temperature | 260℃ |
|---|
DOWNLOAD
| CATEGORY | TITLE | SIZE | FILE TYPE | DOWNLOAD |
|---|---|---|---|---|
| Drawing | 124B-150A12 | 453 KB | PDF: Drawing |  |
| 3D | 124B-150A12 | 5339 KB | RAR: 3D File | |
| Datasheet | 124B-150AX2 | 443 KB | PDF:Spec | |
