M8 Connectors

ATTEND M8 Circular Connectors and Single Pair Ethernet SPE Connectors

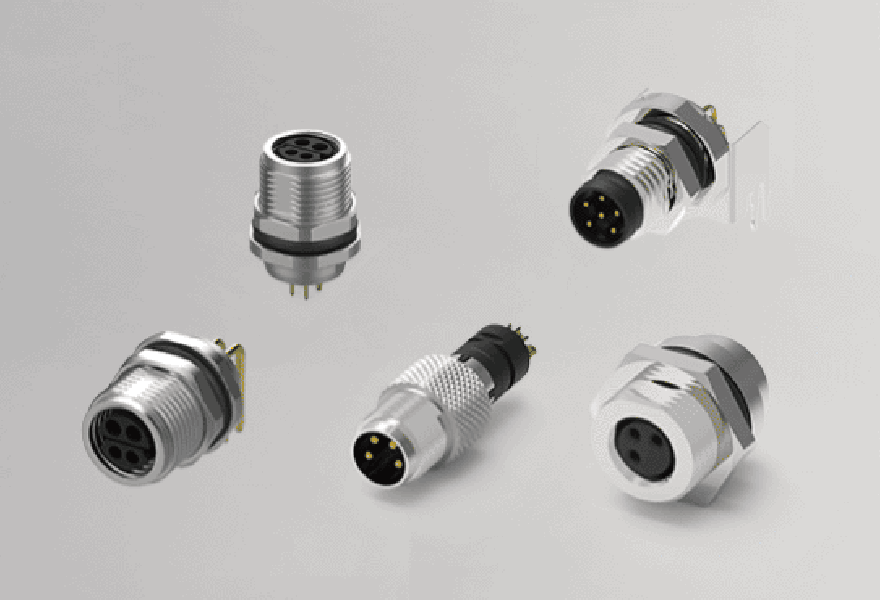

ATTEND M8 circular connectors provide A-coded solutions for signal and power connectivity, alongside Single Pair Ethernet (SPE) connectors and cable assemblies designed for industrial Ethernet applications. The product range includes multiple pin configurations, PCB mounting styles, field-installable connectors, and cable assemblies for industrial automation, sensor and actuator connections, fieldbus communication, and industrial networking equipment.

ATTEND A-coded M8 connectors are available in 2, 3, 4, 5, 6, and 8-pin configurations, with current ratings from 1.5 A to 3 A and voltage ratings ranging from 30 VAC/DC to 50 VAC/60 VDC. Designed in accordance with IEC 61076-2-104, these IP67-rated connectors operate from -40°C to +85°C and support reliable signal and power connectivity in compact industrial equipment.

ATTEND M8 SPE connectors and cable assemblies offer 2-pin and 4-pin hybrid configurations, including PCB-mounted connectors and cable assembly options. Supporting IEEE 802.3 BASE-T1 communication, selected solutions are designed in accordance with IEC 63171-5 or IEC 63171-6 requirements. The series covers data transmission applications from 10 Mbps to 1 Gbps, while hybrid configurations integrate data connectivity with dedicated power contacts for industrial sensing, robotics, and smart factory equipment.

+ Shop Now + Contact Us

Key Features

A-coded M8 options in 2, 3, 4, 5, 6, and 8-pin configurations
A-coded series compliant with IEC 61076-2-104

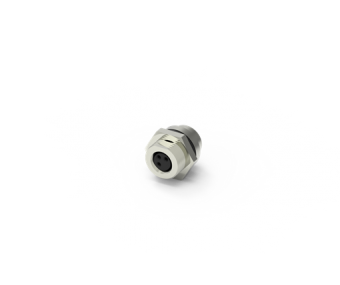

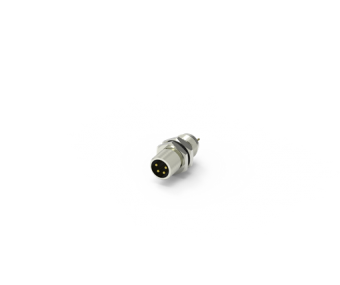

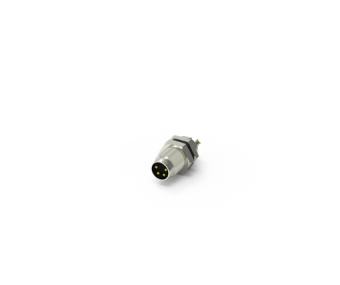

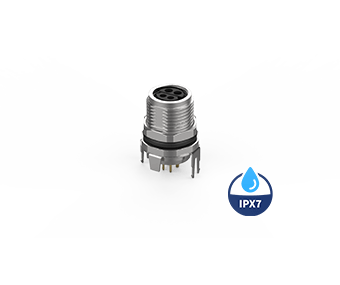

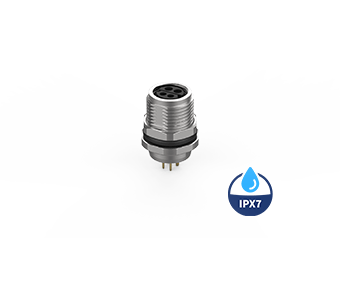

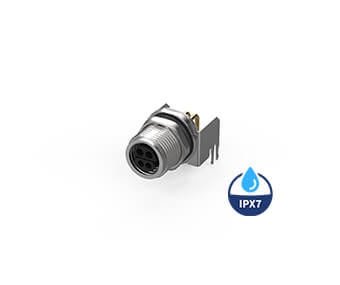

PCB-mounted, solder, and cable configurations

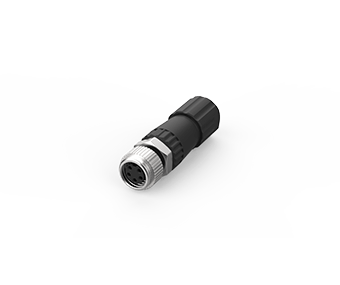

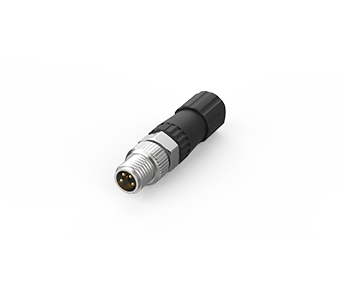

Overmolded and field-installable cable options
A-coded series current ratings from 1.5 A to 3 A

M8 SPE options in 2-pin and 4-pin hybrid configurations
Supports IEEE 802.3 BASE-T1 industrial Ethernet communication
SPE data transmission applications from 10 Mbps to 1 Gbps
4-pin hybrid designs combine data and dedicated power contacts
IP67 and IP68 protection options depending on configuration

Applications

Industrial automation and control systems
Sensor and actuator connections
Fieldbus communication systems

Industrial Ethernet and IIoT devices
Robotics, AGV, and AMR systems
Machine vision and smart factory equipment

FAQs

What industrial applications are ATTEND M8 circular connectors suitable for?

ATTEND M8 circular connectors are designed for industrial automation, sensor and actuator connections, fieldbus communication, and compact equipment I/O interfaces. The product range includes A-coded connectors and M8 SPE solutions to support signal, power, and industrial Ethernet connectivity in demanding industrial environments.

What M8 connector configurations does ATTEND offer?

ATTEND A-coded M8 connectors are available in 2, 3, 4, 5, 6, and 8-pin configurations, including male and female connectors, PCB-mounted receptacles, solder types, field-installable connectors, and overmolded cable assemblies. The M8 SPE series also provides 2-pin and 4-pin hybrid configurations, including PCB connectors and cable assemblies for industrial data and power connectivity.

What is the difference between M8 SPE and traditional A-coded M8 connectors?

Traditional A-coded M8 connectors are primarily used for signal and power connections in industrial sensors, actuators, and equipment interfaces. M8 SPE connectors are designed for Single Pair Ethernet communication, supporting industrial Ethernet BASE-T1 applications. ATTEND offers 2-pin SPE and 4-pin hybrid options, with hybrid configurations combining data connectivity and dedicated power contacts within a compact interface for industrial IoT, robotics, and smart factory equipment.
