MXM Connector


MXM Connectors

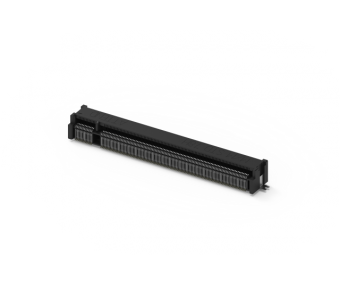

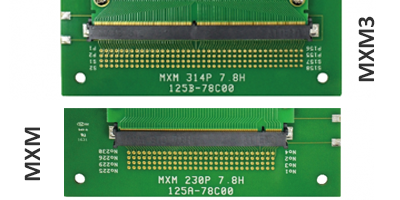

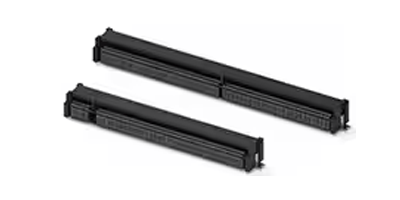

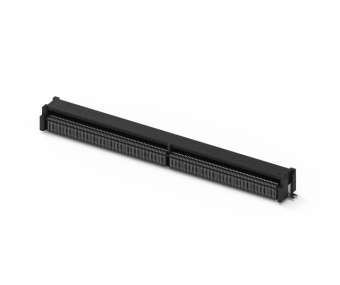

ATTEND's 125B-78C00 and 125A-78C00 are robust MXM connectors that offer a high-density PCIe® solution specifically designed to support advanced server system architectures. These connectors serve as an interface between the carrier board and the SMARC® and Qseven® or embedded GPU modules, transmitting all I/O signals. With a 0.50 mm pitch and 314 contacts, MXM3 connectors save PCB space, making them an ideal choice for compact designs. The MXM3 connector is a small form factor, low-power, high-performance connector supporting multiple high-speed peripheral applications. MXM interfaces are widely used in various mobile devices, including industrial controllers, in-vehicle computers, gaming, edge computing, and edge AI accelerators.


Key Features

  • Compatible with the MXM 3.0/2.0 standard
  • Mating area: 0.5 mm pitch, space-saving
  • 7.8 mm height, module board mating height 5.0 mm from main board
  • Carrier connector 230 pins for Qseven specification
  • Ready for M2.5 nut and screw installation
  • Excellent signal integrity such as USB, SATA , PCIe , LVDS , eDP , MIPI , and Ethernet


  • Edge computing
  • Edge AI accelerators
  • Telematics and V2X
  • IIoT
  • Gaming
  • M2M
