Sealed Connectors

Waterproof I/O Connectors and Cable Assemblies

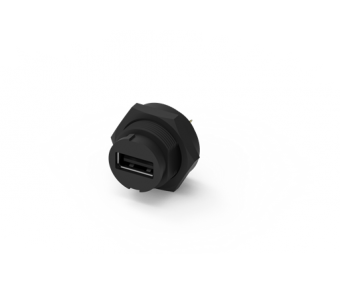

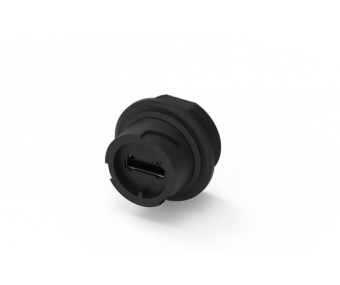

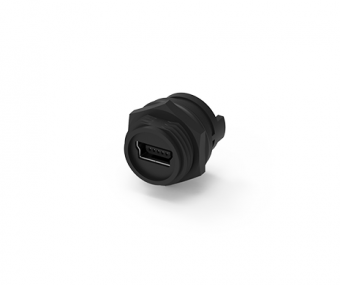

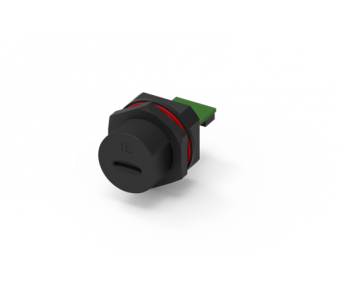

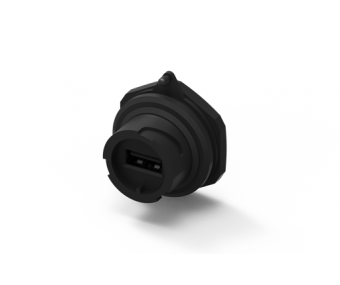

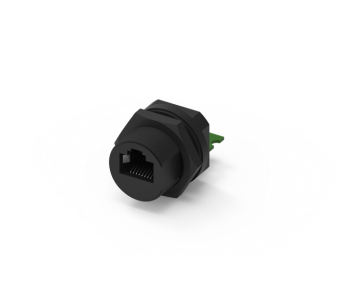

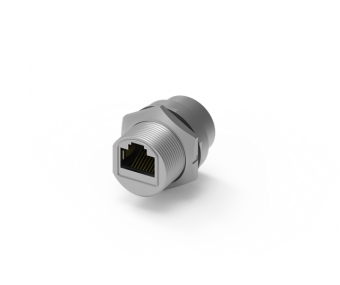

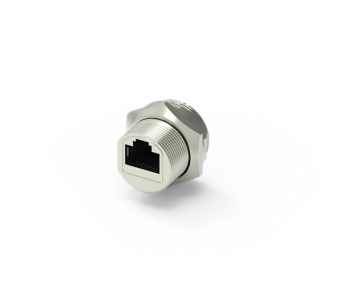

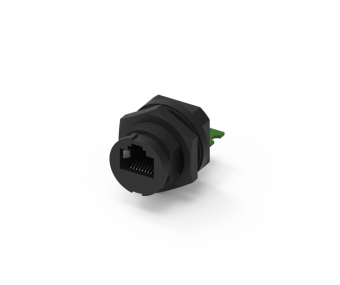

ATTEND’s sealed I/O connector series delivers reliable power, signal, and high-speed data transmission in harsh environments through compact, rugged plastic or metal housings. With ingress protection ratings ranging from IP67 to IP68, the portfolio includes USB Type-C, USB 2.0 Type-A, Mini USB Type-B, HDMI Type-A, RJ45 (8P8C), and Nano SIM solutions. Designed for demanding applications such as industrial automation, outdoor equipment, communications, and robotics, the series supports FPC, straight PCB, and right-angle PCB mounting options. Secure quick-lock, threaded, and bayonet coupling mechanisms provide reliable mechanical retention, while a wide operating temperature range of −40°C to +85°C ensures dependable performance in challenging environments.

Features:

Comprehensive I/O Portfolio: Supports USB Type-C (USB 3.2 Gen 2, up to 10 Gbps), USB 2.0 Type-A, Mini USB Type-B, RJ45 (8P8C), HDMI Type-A, and Nano SIM interfaces.
Harsh-Environment Protection: Ingress protection ratings ranging from IPX7/IP67 to IP68 help protect against water, dust, and particulate ingress.
Secure Locking Mechanisms: Threaded screw-coupling, bayonet, and quick-lock options provide secure mechanical retention.
Flexible Terminations: Available with straight DIP, right-angle DIP, FPC interfaces, and molded cable assemblies.
High Durability & Power Delivery (USB Type-C): Supports up to 3 A for VBUS/GND and 1 A for signal pins, with durability of up to 3,500 mating cycles.
Corrosion-Resistant Enclosures: Engineered plastic and metal housings are designed to withstand salt mist, chemical exposure, and sterilization processes.
Wide Operating Temperature Range: Supports operation from −40°C to +85°C across the series.
