SPE Connectors
ATTEND’s T1 Industrial Single Pair Ethernet (SPE) Connector and Cable Assembly Series provides compact, lightweight, and cost-effective Ethernet connectivity for modern industrial networks. Designed for Single Pair Ethernet architectures, the series supports data and power transmission over a single pair while offering connector, PCB interface, and cable assembly options for different equipment and installation requirements.
Supporting IEEE 802.3 BASE-T1 technologies and interface options based on IEC 63171-2, IEC 63171-5, and IEC 63171-6, the series enables Ethernet transmission from 10 Mbps up to 1 Gbps. Product options include PCB connectors, rugged M8 interfaces, and industrial cable assemblies for automation, robotics, machine vision, transportation, and IIoT applications.
Features and Benefits
- Supports IEEE 802.3 BASE-T1 Ethernet
- Data rates from 10 Mbps up to 1 Gbps
- IEC 63171-2, -5, and -6 interface options
- Connector, PCB, and cable assembly solutions
- PoDL support for data and power over a single pair
- IP20 and rugged IP-rated interface options
- Straight and right-angle configurations available
- Custom cable assembly options
Applications
- Industrial automation & control systems
- Robotics / AGV / AMR Systems
- Machine Vision
- Industrial Sensors & Actuators
- Factory and Building Automation
- Railway & Transportation Systems
- IIoT and Edge Devices
- Agricultural Machinery
SPE-1P1P-10003 SPE IP20 2Pin Female-to-Female Cable, 100cm
INQURY
229B-02MS01 M8 SPE Two Piece Insert, 2Pin Male Straight SMD
INQURY

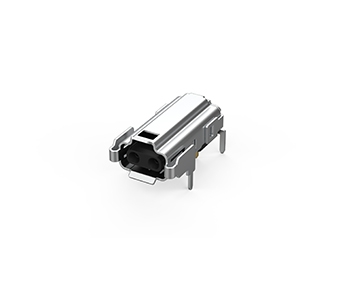

229A-R202 SPE IP20 Jack, 2PIN R/A DIP
INQURY
SPE-2R2R-10001 M8 SPE 2PIN Female to Female Cable, 1M
INQURY
SPE-1P1P-12002 M8 SPE Hybrid Male to Male CABLE, L=1.2M
INQURY
229B-04FS04 SPE M8 4 Pin Hybrid Jack, Straight, 30u"
INQURY
229B-04FS01 SPE M8 4 Pin Hybrid Jack, Straight, w/GND, 30u"
INQURY
229B-04FR01
