Board-to-Board Connectors

ATTEND’s Board-to-Board connector series delivers compact, high-performance interconnect solutions designed to meet the needs of both slim consumer devices and robust industrial systems. The portfolio combines FPC connectors and Floating Board-to-Board connectors, offering flexibility for space-constrained layouts as well as durability for demanding environments.

The FPC connectors feature ultra-low profile heights from 0.9 mm to 5.95 mm and fine pitches of 0.3 mm, 0.5 mm, and 1.0 mm. Available in Slide and Flip-Lock types with horizontal and vertical orientations, they provide lightweight, reliable connections for display modules, portable devices, and compact electronics.

The Floating Board-to-Board connectors incorporate a built-in floating mechanism that compensates for X- and Y-axis misalignment up to ±0.5 mm, reducing assembly stress and ensuring consistent performance. Supporting data rates up to 8 GT/s (PCIe 3.0) and narrow 0.5 mm pitch with multiple contact options, these connectors maintain stable signal integrity under vibration, shock, and thermal expansion.

With robust designs, wide operating temperature ranges (–40°C to +105°C), and proven long-term reliability, ATTEND’s Board-to-Board connector series is well-suited for a broad range of applications, including:

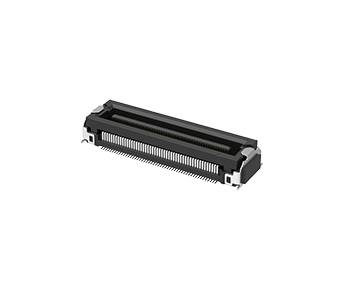

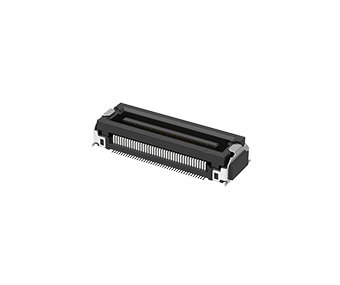

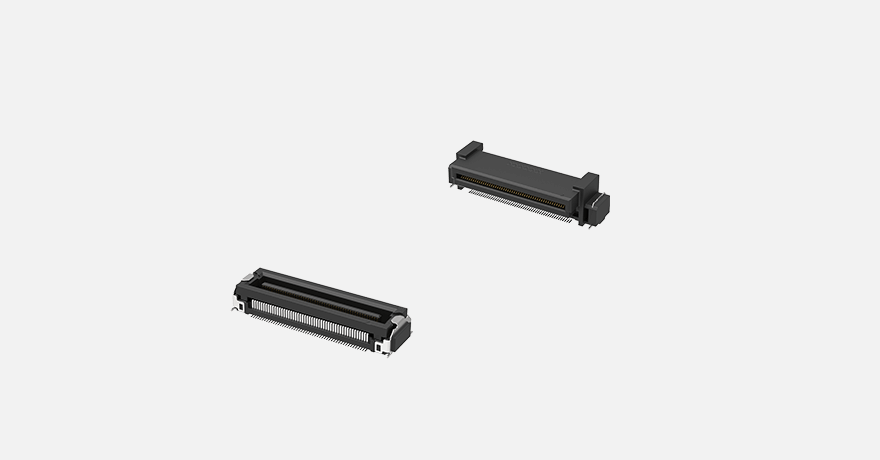

Floating Board-to-Board connectors

• The floating design compensates for misalignment in X and Y directions up to ±0.5mm.
• Supports high-speed data transmission up to 8GTs (PCIe 3.0).
• Supports 0.5 mm narrow pitch with 60/80/100 contact options.
• Elastic structure provides flexibility and reduces mechanical stress during assembly.
• Withstands vibration and shock for reliable performance in harsh environments.
• Ensures stable contact through compliant terminal design.Wide operation temperature range from -40°C to +105°C.

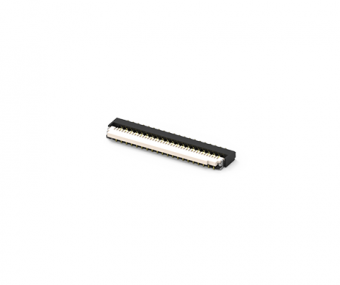

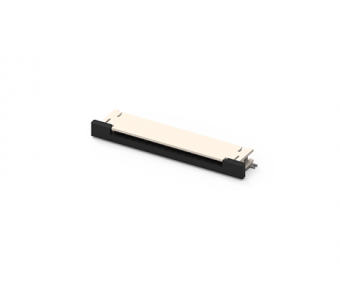

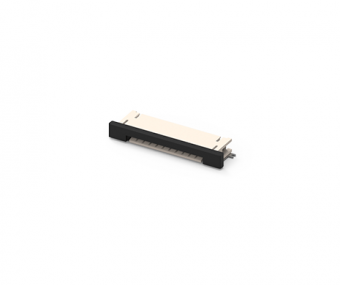

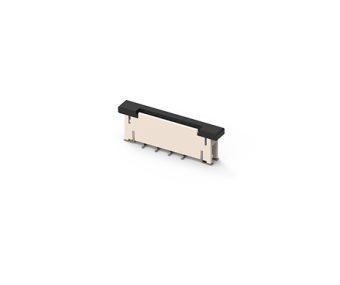

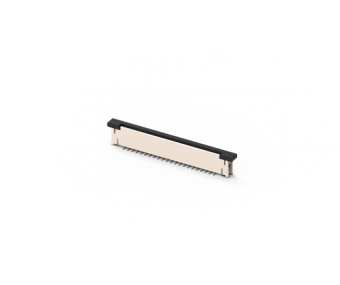

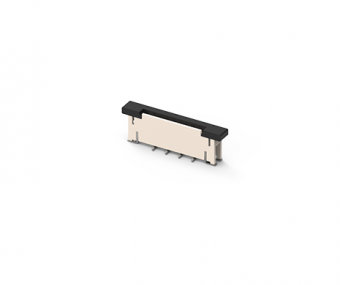

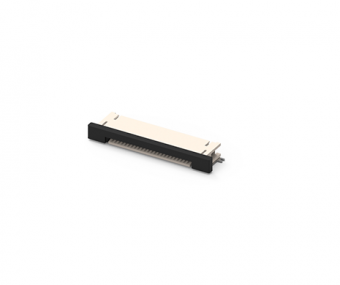

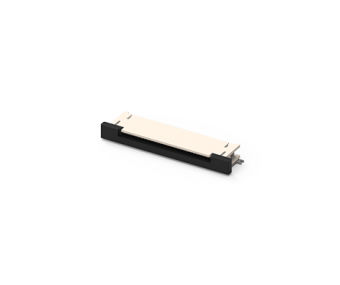

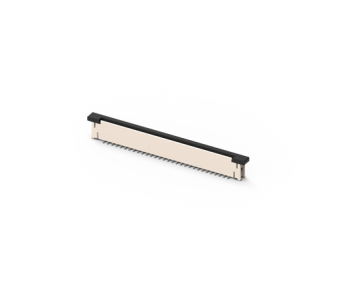

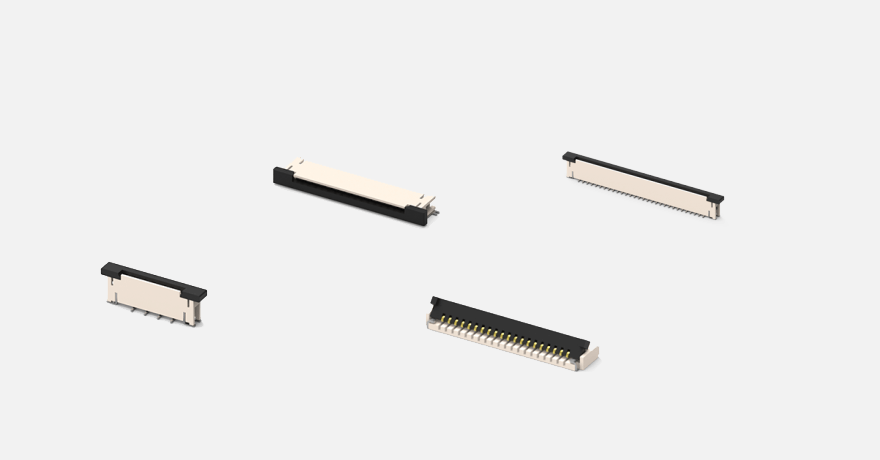

FPC connectors

• Ultra-low profile heights ranging from 0.9mm to 5.95mm for slim device designs.
• Fine pitch options in 0.3mm, 0.5mm, and 1.0mm for high-density signal transmission.
• Variety of mechanisms, including Slide type and Flip-Lock type, available in both horizontal and vertical orientations.
• Flexible configurations with multiple pin counts and mounting styles to fit diverse design needs.
