Waterproof Connectors

What Are Waterproof Connectors?

Waterproof connectors are designed for power, signal, data, and RF transmission, using sealing structures, housing designs, and locking mechanisms to reduce the risk of water, dust, and other contaminants entering the connection interface. Depending on the product design and test conditions, protection levels may include IP67, IP68, or other IP ratings. Common applications include industrial automation, robotics, automotive systems, outdoor equipment, and embedded devices.

ATTEND Waterproof Connector Portfolio

Browse ATTEND waterproof connector families by interface and application. Compare IP rating, connector type, electrical or data requirements, mounting method, and environmental conditions before selecting a product.

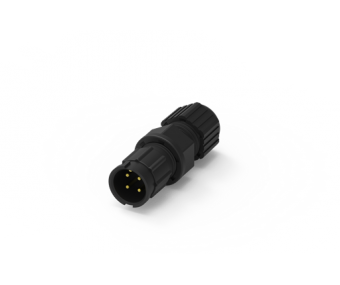

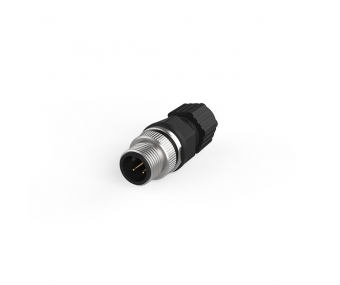

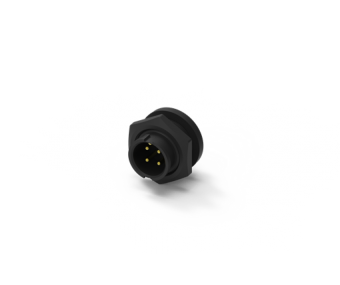

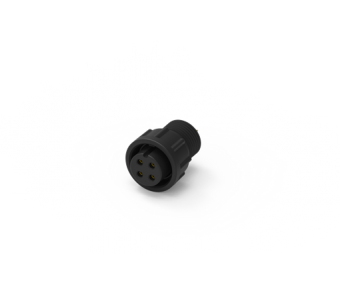

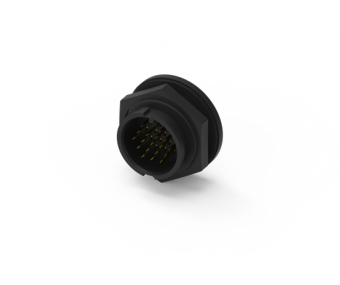

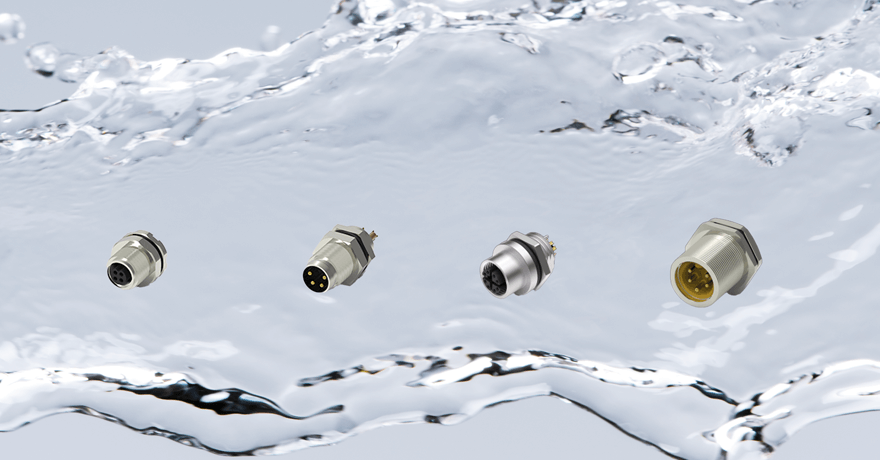

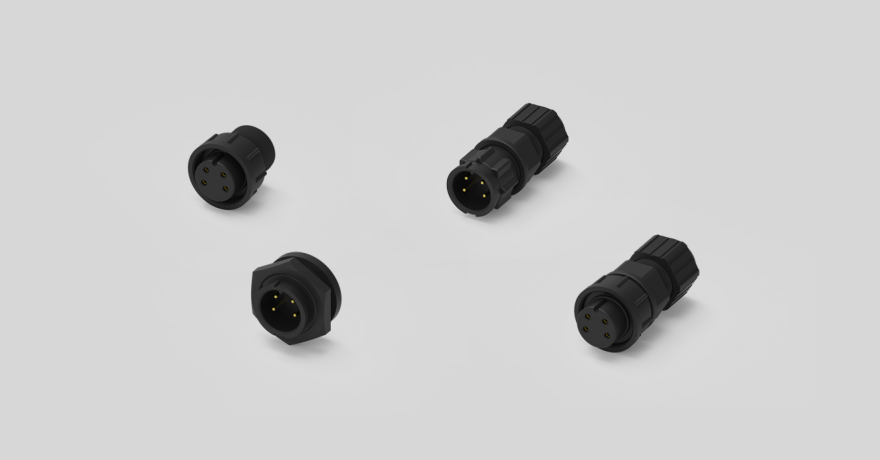

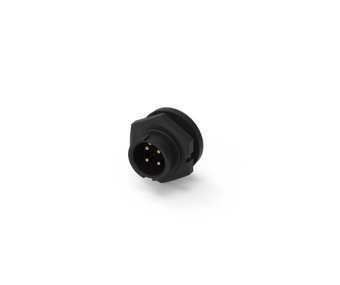

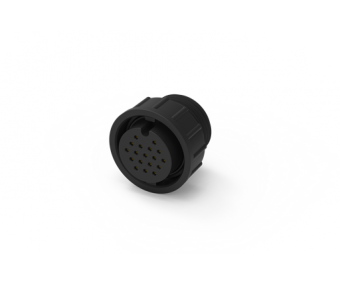

Industrial Power & Signal M Series Circular Connectors M5, M8, M12, and M23 circular connector solutions for industrial power, signal, and data connections. M5 / M8 / M12 / M230.5–20 A50–250 V APPLICATIONS Industrial AutomationRoboticsIndustrial Sensors + Explore + Inquiry	Lightweight Circular Connectivity All-Plastic Circular Connectors Lightweight all-plastic circular connectors with bayonet locking for equipment requiring protected and corrosion-resistant connections. IP67−40°C to +85°CUp to 1,000 Cycles APPLICATIONS Outdoor EquipmentIndustrial EquipmentPortable Devices + Explore + Inquiry	Spring-Loaded & Magnetic Interfaces Waterproof Pogo Pin Connectors Waterproof pogo pin and machine pin connectors, including standard and magnetic options, for charging, docking, power, and signal connections in protected equipment interfaces. IP672 / 4 / 5 / 6 / 8 PositionsStandard & Magnetic APPLICATIONS Rugged HandheldsCharging & DockingPortable Devices + Explore + Inquiry

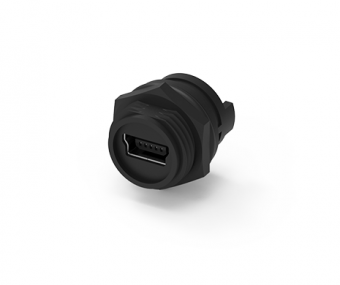

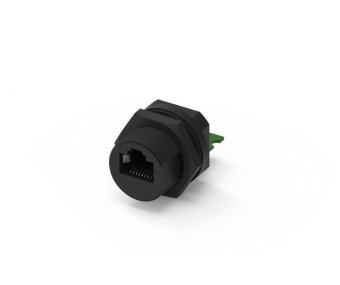

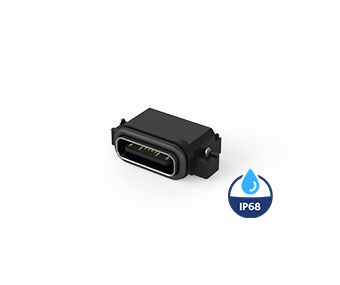

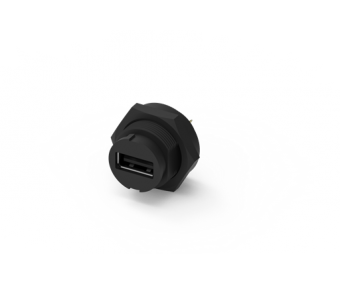

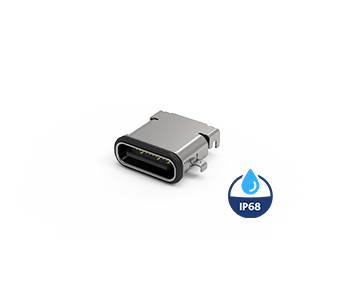

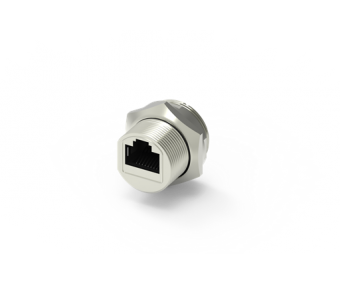

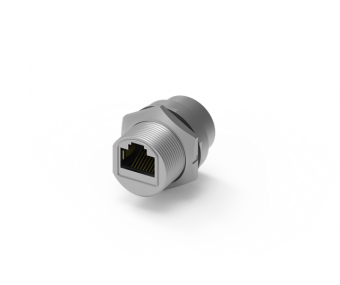

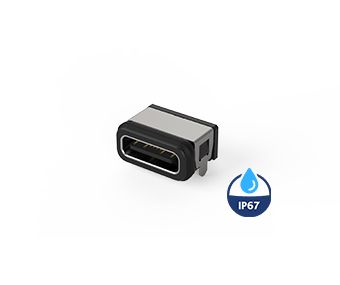

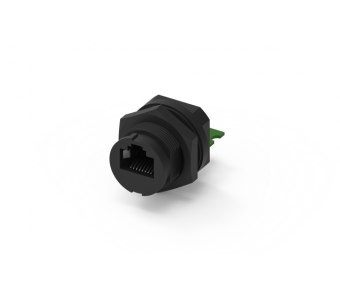

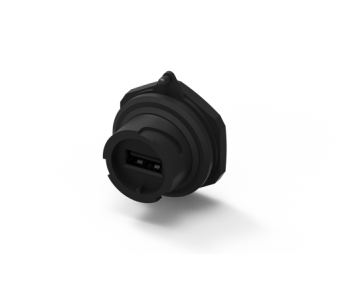

Industrial Ethernet Waterproof RJ45 Connectors Circular waterproof RJ45 interfaces for protected Ethernet connections in industrial, outdoor, and communication equipment. IP671.5–2.0 A−40°C to +85°C APPLICATIONS Industrial EthernetOutdoor NetworkingFactory Automation + Explore + Inquiry	Standard USB Interfaces Waterproof USB Connectors Waterproof USB options for standard USB interfaces used in industrial, embedded, and outdoor equipment. IP67USB 2.0Type-A / Mini / Micro APPLICATIONS Industrial EquipmentOutdoor ElectronicsEmbedded Systems + Explore + Inquiry	High-Speed USB Connectivity Waterproof USB Type-C Connectors Waterproof USB Type-C receptacles for data, power, and protected equipment interfaces with multiple PCB mounting options. IP67 / IP68Up to 10 Gbps−40°C to +85°C APPLICATIONS Outdoor IoTRugged EquipmentIndustrial Data Interfaces + Explore + Inquiry

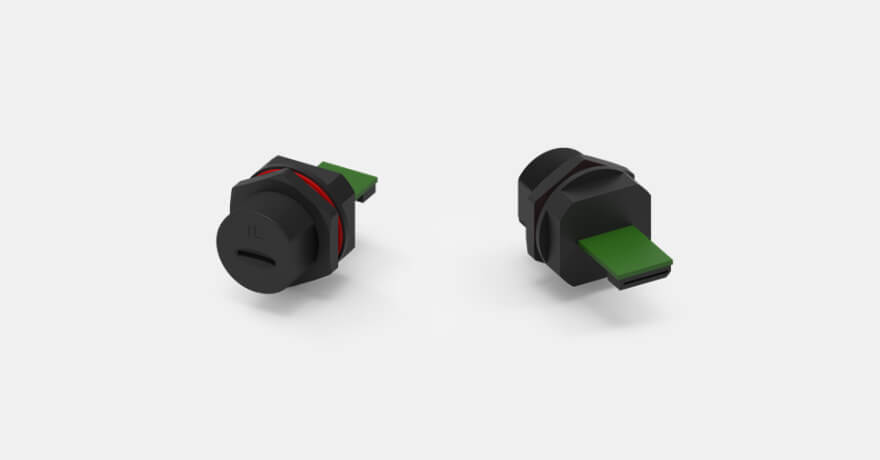

Protected SIM Interfaces Waterproof SIM Card Sockets Push-Pull SIM card sockets with waterproof tray options for embedded, IoT, transportation, and portable applications. IP67−40°C to +105°CNano / Dual Nano / Stacked SIM APPLICATIONS IoT DevicesTransportationEmbedded Systems + Explore + Inquiry	Multi-Interface Protection Sealed Connectors Sealed I/O solutions for commonly used external data, network, and card interfaces in protected equipment connections. USBRJ45 / HDMISIM APPLICATIONS Industrial EquipmentOutdoor ElectronicsEmbedded Systems + Explore + Inquiry	Compact RF Connectivity Waterproof Mini FAKRA Connectors Compact waterproof RF connectors and cable assemblies for high-density automotive, camera, and mobile connectivity applications. IP67Up to 15 GHzISO 20860-1 / -2 APPLICATIONS Automotive CamerasADASVehicle Connectivity + Explore + Inquiry
High-Current Battery Connectivity Waterproof Blade Connectors IP67-rated high-current battery connectors for reliable power and signal connections in robotics, drones, e-bikes, and industrial equipment. IP6730 A Power / 5 A Signal6P / 4P + 9 Signal APPLICATIONS RoboticsBattery-Powered EquipmentE-Mobility + Explore + Inquiry

Compare ATTEND Waterproof Connector Families

Compare interfaces, protection ratings, and common applications. Always verify the exact part number, mating condition, and sealing components in the product datasheet.

Product Family	IP Rating	Connection Type	Typical Applications
M Series Circular	Model-dependent	Power / Signal / Data	Industrial Automation
All-Plastic Circular	IP67	Power / Signal	Outdoor Equipment
Waterproof Pogo Pin	IP67	Charging / Signal	Rugged Handheld Devices
Waterproof RJ45	IP67	Ethernet	Industrial Networking
Waterproof USB	IP67	USB Type-A / Mini / Micro	Embedded Equipment
Waterproof USB-C	IP67 / IP68	USB Type-C	Outdoor IoT
Waterproof SIM	IP67	SIM	IoT / Transportation
Sealed I/O	IP67 / IP68	USB / RJ45 / HDMI / SIM	Industrial Equipment
Waterproof Mini FAKRA	IP67	RF	Automotive Cameras
Waterproof Blade Connectors	IP67	Battery Power / Signal	Battery Systems / Robotics / E-Mobility

* Model-dependent means the rating varies by part number or configuration; check the individual datasheet. IP ratings may apply only under specified mated or sealed conditions.

Find Waterproof Connectors by Interface

Start with the connection requirement, then verify the IP rating, mounting method, electrical performance, and environmental conditions of the individual product.

Industrial power and signal	M Series Circular Connectors, All-Plastic Circular Connectors
Ethernet connectivity	Waterproof RJ45 Connectors, selected M Series configurations
USB data and power	Waterproof USB Connectors, Waterproof USB Type-C Connectors
Charging and docking	Waterproof Pogo Pin Connectors
Cellular / SIM access	Waterproof SIM Card Sockets
High-frequency RF	Waterproof Mini FAKRA Connectors
Standard external I/O	Sealed I/O Connectors

How Do You Choose a Waterproof Connector?

Choosing a waterproof connector starts with the required interface—power, signal, Ethernet, USB, SIM, or RF—then the required IP rating, mounting method, electrical or data performance, operating temperature, mating condition, cable requirements, and enclosure design.

How to Select the Right Waterproof Connector

Identify the required interface: power, signal, USB, Ethernet, or RF.
Determine the environmental conditions and required IP rating.
Verify mated or unmated sealing requirements.
Check electrical ratings, data rates, and operating temperature.
Select the mounting method and cable termination.
Compare connector specifications and select the suitable ATTEND product series.

IP67 and IP68 ratings describe defined ingress-protection test conditions, but the applicable rating may depend on whether the connector is mated and which sealing components are used. Always verify the individual product specification before final selection.

ENGINEERING GUIDE

Need More Guidance on IP Ratings?

IP67, IP68, and IP69K correspond to different ingress-protection and test conditions. Learn how IEC 60529 defines IP ratings and what engineers should evaluate when selecting protection levels for industrial equipment.

Engineering Guide to IP Ratings →

Frequently Asked Questions

What types of waterproof connectors does ATTEND offer?

ATTEND offers waterproof options across multiple connector families, including M Series circular connectors, all-plastic circular connectors, USB, USB Type-C, RJ45, pogo pins, SIM card sockets, Mini FAKRA, and sealed I/O interfaces.

What is the difference between IP67 and IP68 connectors?

IP67 and IP68 represent different water-ingress protection conditions. IP68 test conditions are defined by the applicable product specification and should not be treated as one universal immersion depth or duration. Always verify the individual product specification before final selection.

Are waterproof connector ratings valid when unmated?

Not always. Some connector IP ratings apply only when the connector is fully mated or when specified sealing components are installed. The applicable condition should be confirmed in the individual product specification.

How should I choose a waterproof connector?

Start with the required interface, then evaluate the environmental protection level, mounting method, electrical or data requirements, operating temperature, mating condition, cable requirements, and mechanical constraints of the system.

Which waterproof connectors are suitable for industrial automation and robotics?

For industrial sensors, actuators, and robotic equipment, consider M Series Circular Connectors for power, signal, or data connections, Waterproof Pogo Pin Connectors for charging or docking, and Waterproof Blade Connectors for rechargeable battery systems. Select by current, pin configuration, mounting, vibration exposure, and the specific IP rating.

Does ATTEND offer IP67 or IP68 waterproof USB Type-C connectors for outdoor IoT devices?

Yes. ATTEND offers Waterproof USB Type-C Connectors with IP67 or IP68 options for protected power and data interfaces in outdoor IoT and industrial equipment. The rating and its applicable mated or unmated conditions vary by design, so verify the selected part's datasheet and enclosure sealing method.

How do engineers choose between M8, M12, and M23 circular connectors?

Compare the required contact count, current and voltage, data protocol, available installation space, and environmental conditions. ATTEND M Series Circular Connectors include compact M8 options, versatile M12 coding configurations for industrial signal/data connections, and larger M23 options for higher-power applications. Do not assume identical IP or electrical ratings across sizes; check each part number.

What waterproof connector options are available for industrial Ethernet applications?

ATTEND offers IP67 Waterproof RJ45 Connectors for protected Ethernet interfaces and selected M Series Circular Connectors suitable for industrial data applications. Confirm the supported data rate, coding, shielding, cable assembly, and sealing conditions before selection.

How can US OEM customers obtain ATTEND waterproof connector datasheets and purchasing information?

US OEM engineers and buyers can review the relevant waterproof product families, request technical specifications through Contact ATTEND, or check the Distributor & Sales Rep page for available purchasing channels. Share the part number, expected volume, application, and required IP rating to help the team route the inquiry.

Need Help Finding the Right Waterproof Connector?

Share your interface, IP rating, contact count, electrical or data requirements, mounting method, cable requirement, and operating environment with the ATTEND team.

Contact Our Team Find a Distributor
