Flash Memory Socket

*
CF-storage-cards-Circular-Connectors

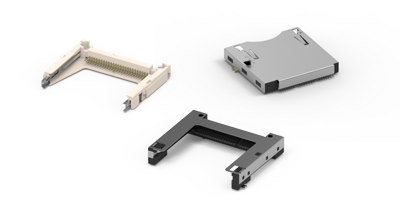

ATTEND provides various socket solutions for CompactFlash, CF Express, and CFast memory cards

ATTEND's CF storage cards are based on the 50-pin parallel ATA interface (PATA) with data transfer speeds of up to 133 MB/s. The 101D series CompactFlash socket is a popular and continuously preferred option for use in digital cameras and industrial equipment.

CF Express combines the compact form factor of XQD cards with a high-speed PCIe® interface and it utilizes the NVMe protocol to ensure efficient communication between the card and the host device. The 101M series CFexpress type B host socket supports data transfer speeds of up to 2,000 MB/s. It is designed to cater to the needs of professional photographers and videographers who require rapid and reliable storage solutions.

CFast cards utilize the SATA interface and the 120 series socket supports SATA 3.0 data transfer speeds of up to 600 MB/s, enabling quick and seamless communication between the card and the host device. This format is commonly used in professional digital cinema cameras, high-end DSLRs, and other devices where rapid and reliable storage is essential for capturing high-quality video and images.

circular connector overmolde shield
CFast
  • Compatible two standard CFast 1.0/1.1 (300 MB/s) and CFast 2.0 (600 MB/s)
  • Many various types available, including push-pull, slim, and vertical types
  • 7 pins for signal transmission and 17 pins for power and control, resulting in a total of 24 pins
CF Express
  • Type B host socket compatible PCIe Gen3 x2 (2,000 MB/s)
  • Push-push and push-pull options are available with or without a lock and are suitable for many applications
CF
  • Many various types available, including type I/II card hybrid, ejector, slim, and reverse slim
  • Meets CFA standards for known compatibility and reliability
  • Locating peg distance has two optional choices: 38.74 mm and 40.16 mm
  • Optional 1.4 mm board standoff enables board population
Applications-cfexpress-card-connector

Applications:

  • Industrial equipment
  • In-vehicle computers
  • Digital cinema cameras
  • High-end DSLRs
  • Recorders

Product Type

Connector Solution 104I-TA01 104I-TA01

UHS-II SD 4.0 Socket, Push-Push Type

INQURY
Connector Solution 101M-TE30 101M-TE30

CFexpress Type B Socket, Push-Pull w/Lock

INQURY
Connector Solution 101M-TE20 101M-TE20

CFexpress Type B Socket, Push-Pull Type

INQURY
Connector Solution 101M-TE10 101M-TE10

CFexpress Type B Socket, Push-Push Type

INQURY
Connector Solution 104C-TAA1 104C-TAA1

SD Card Socket, Push-Pull Type, w/switch

INQURY
Connector Solution 101B-TAA0-R 101B-TAA0-R

CF Socket, Type I/II

INQURY
Connector Solution 104D-RCA0-RA1 104D-RCA0-RA1

SD Card Socket, Reverse Push-Push Type, w/switch

INQURY
Connector Solution 101C-ESB0-R 101C-ESB0-R

CF Socket Ejector, Straight type

INQURY
Connector Solution 104D-TCA0-R06 104D-TCA0-R06

SD Card Socket, Push-Push Type

INQURY
Connector Solution 101D-RAAA-R01 101D-RAAA-R01

CF Socket, Reverse Slim type, Locating Peg: 40.16mm

INQURY
Connector Solution 101D-RAAB-R01 101D-RAAB-R01

CF Socket, Reverse Slim type, Locating Peg: 38.74mm

INQURY
Connector Solution 104H-TDA0-R01 104H-TDA0-R01

SD Card Socket, Push-Push Type, w/Lock

INQURY
Connector Solution 101D-RACA-R01 101D-RACA-R01

CF, Reverse Slim, Locating Peg 40.16mm, S/O 1.4mm

INQURY
Connector Solution 112A-TAAR-R03 112A-TAAR-R03

Micro SD Socket, Push-Push Type, H=1.83mm

INQURY
Connector Solution 101D-RACB-R01 101D-RACB-R01

CF, Reverse Slim, Locating Peg 38.74mm, S/O 1.4mm

INQURY
Connector Solution 112C-TBAR-R02 112C-TBAR-R02

Micro SD Socket, Hinge Type

INQURY
Connector Solution 101D-TAAA-R01 101D-TAAA-R01

CF Socket, Slim type, Locating Peg: 40.16mm

INQURY

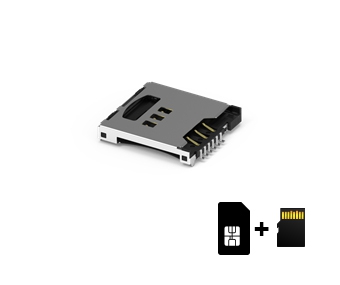

Connector Solution 112G-TA00-R 112G-TA00-R

Micro SD with SIM Card Socket, Push-Push Type

INQURY
Connector Solution 112I-TA01 112I-TA01

Micro SD socket, Push-Pull Type, w/switch

INQURY
Connector Solution 101D-TAAB-R01 101D-TAAB-R01

CF Socket, Slim type, Locating Peg: 38.74mm

INQURY
Connector Solution 112J-TDAR-R01 112J-TDAR-R01

Micro SD Socket, Push-Push Type, w/Switch, H=1.85mm

INQURY
Connector Solution 112K-TAA0-RA1 112K-TAA0-RA1

Micro SD Socket, Push-Pull Type, w/o Cover

INQURY
Connector Solution 101D-TACB-R01 101D-TACB-R01

CF Socket, Slim type, Locating Peg 38.74mm, S/O 1.4mm

INQURY
Connector Solution 112L-TDA0 112L-TDA0

MicroSD4.0 Socket, Push-Push Type

INQURY
Connector Solution 120A-605D00 120A-605D00

CFAST Socket Push-Pull Type, w/o Lock, H=6.05mm

INQURY
Connector Solution 120A-835D00 120A-835D00

CFAST Socket Push-Pull Type, w/o Lock, H=8.05mm

INQURY
Connector Solution 120B-835D00 120B-835D00

CFAST Socket Push-Pull Type, w/Lock, H=8.35mm

INQURY
Connector Solution 120C-605D00 120C-605D00

CFAST Socket Push-Push Type, H=6.05mm

INQURY
